Description

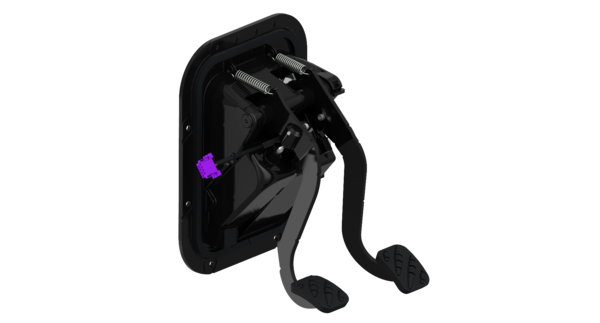

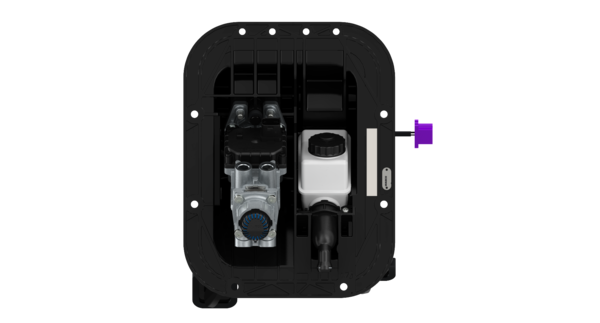

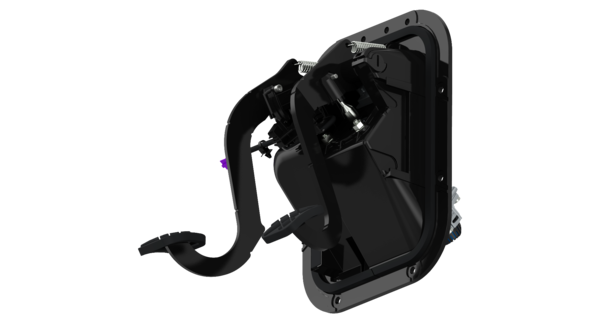

Pedal Unit with Clutch
Part Number: 9650010410
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 36.26 |
| Electrical connection | FCI 8 pins |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J1703 |
| Port thread 11 | Quick connection Ø 12 mm |
| Port thread 12 | Quick connection Ø 12 mm |
| Port thread 2 | Quick connection Ø 12 mm |
| Port thread 21 | Quick connection Ø 12 mm |
| Port thread 22 | Quick connection Ø 12 mm |
| Port thread 3 | Integrated silencer |
| Product category | Device |
| Stroke | 80.65/129 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Brake Pedal and Clutch Pedal |
| Voltage | 24 V |
| GTIN | 04057875299080 |
| Size (mm x mm x mm) | 370 x 280 x 350 |
| UPC | 193133416234 |
| Weight (kg) | 6.23 |
| Weight (lb) | 13.735 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1707777 |
| PACCAR | 1707777 |
| RENAULT | 7482497265 |
