Description

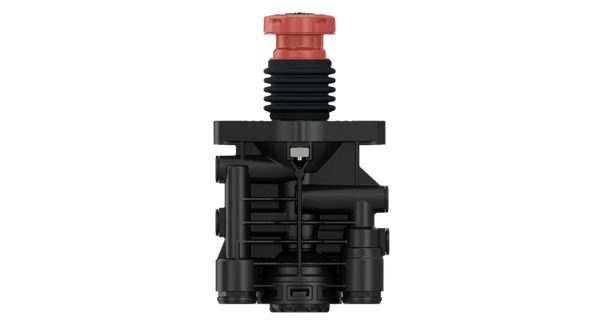

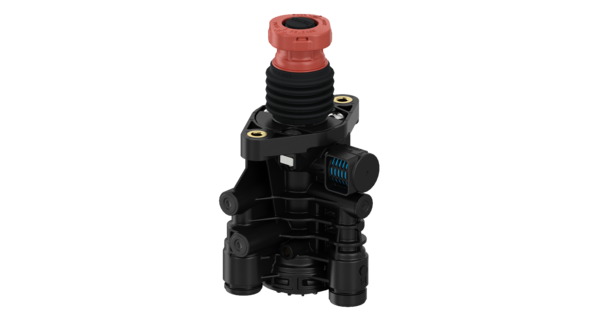

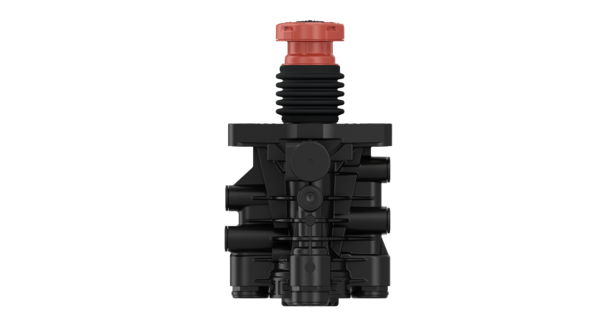

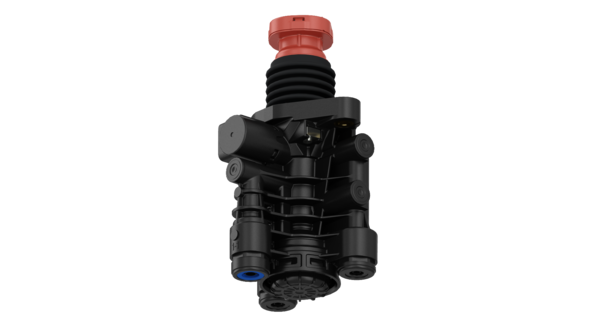

Park Release Valve
Part Number: 9710030030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.991 |
| Color | Black / Red |
| Comments | without test connection |
| Distance between holes | 86.0 mm |
| Max. operating pressure | 12.0 bar |
| Mounting | 2x M8 x 1.25 |
| Port thread 1-1 | Ø 10×1 |
| Port thread 1-2 | Ø 8×1 |
| Port thread 2 | Ø 8×1 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| GTIN | 04057876223312 |
| Size (mm x mm x mm) | 198.5 x 109 x 92 |
| Weight (kg) | 0.528 |
| Weight (lb) | 1.164 |
