Description

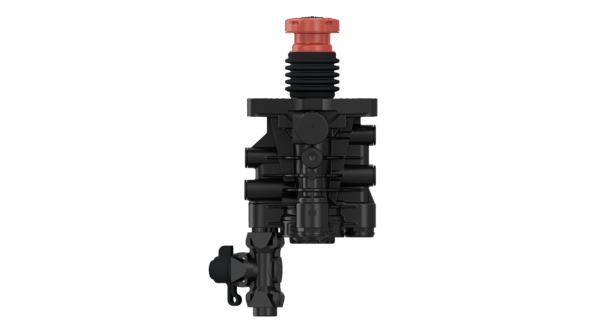

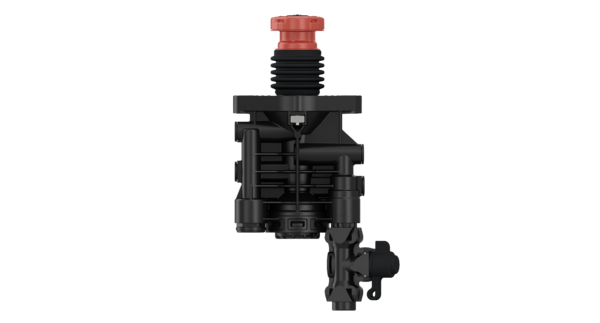

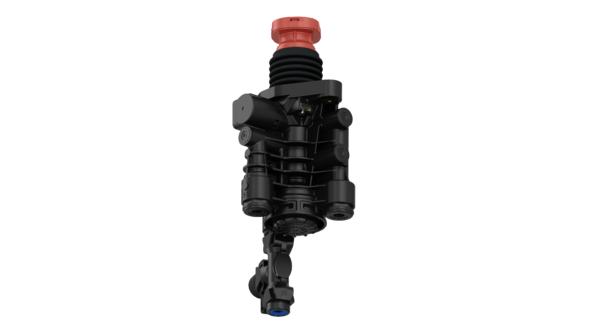

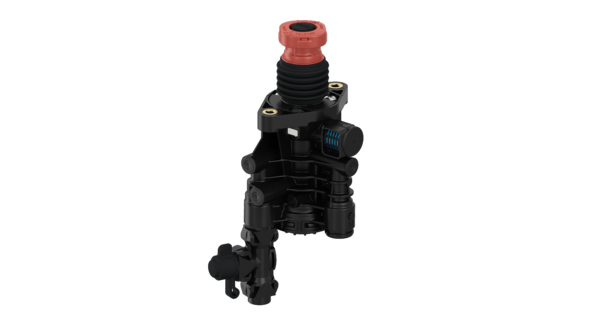

Park release valve with PTC
Part Number: 9710030290
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 2.497 |
| Color | Black / Red |
| Comments | With test connection |
| Distance between holes | 86.0 mm |
| Max. operating pressure | 12.0 bar |
| Mounting | 2x M8 x 1.25 |
| Port thread 1-1 | Ø 8×1 |
| Port thread 1-2 | Ø 8×1 |
| Port thread 2 | Ø 8×1 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| GTIN | 04057885278174 |
| Size (mm x mm x mm) | 249 x 109 x 92 |
| UPC | 193133565796 |
| Weight (kg) | 0.564 |
| Weight (lb) | 1.243 |
