Description

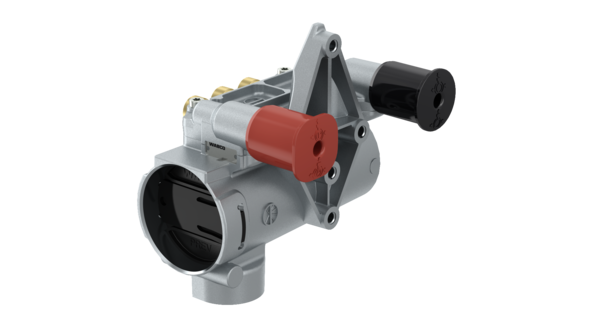

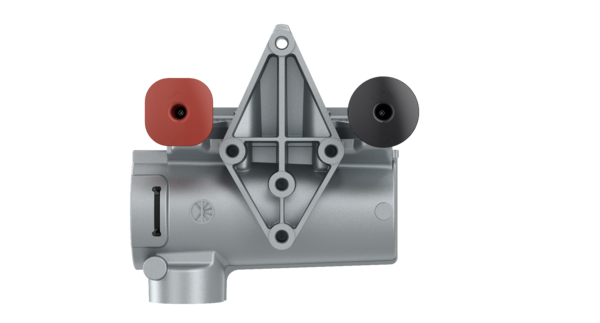

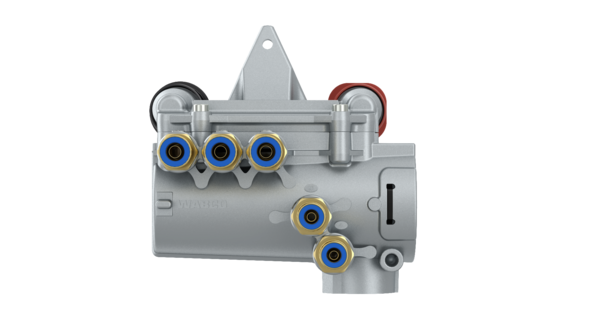

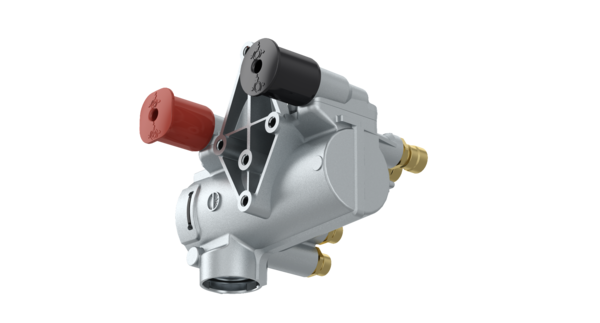

Park Release Emergency Valve
Part Number: 9710029130
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.9232 |
| Color | Black/Red |
| Comments | Without plate |
| Max. operating pressure | 10.0 bar |
| Port thread 1-1 | Fitting Ø 10 x 1 (893 800 009 2) |
| Port thread 1-2 | Fitting Ø 10 x 1 (893 800 009 2) |
| Port thread 21 | Fitting Ø 8 x 1 (893 800 001 2) |
| Port thread 22 | Fitting Ø 10 x 1 (893 800 009 2) |
| Port thread 4 | Fitting Ø 8 x 1 (893 800 001 2) |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Version | Without test connection |
| GTIN | 04057875301752 |
| Size (mm x mm x mm) | 174 x 172 x 164.5 |
| UPC | 193133375562 |
| Weight (kg) | 1.725 |
| Weight (lb) | 3.803 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KRONE | 515008380 |
