Description

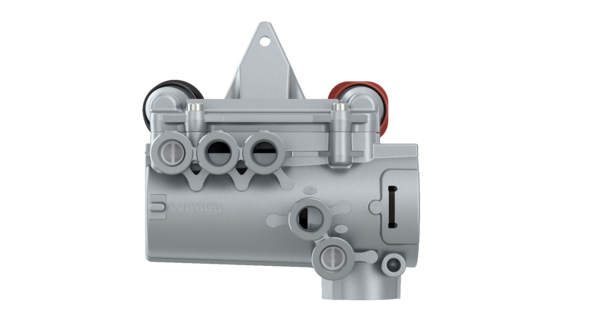

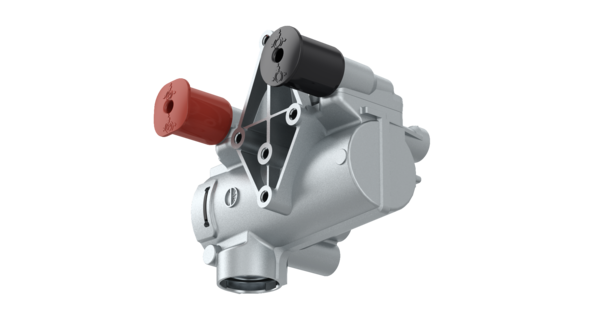

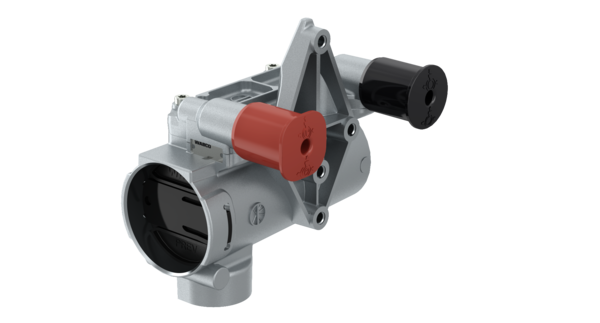

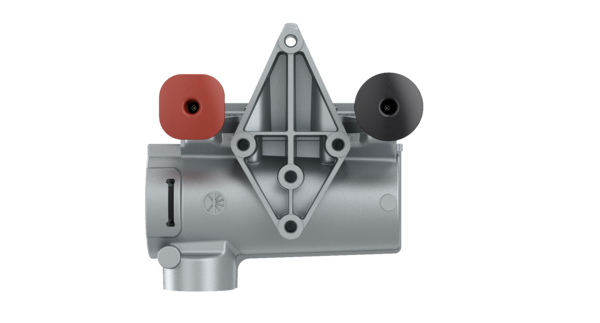

Park Release Emergency Valve
Part Number: 9710029020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.1 |
| Color | Black/Red |
| Comments | Without plate |
| Max. operating pressure | 10.0 bar |
| Port thread 1-1 | M16 x 1.5 JED-152 |
| Port thread 1-2 | M16 x 1.5 JED – 152 |
| Port thread 21 | M16 x 1.5 JED – 152 |
| Port thread 22 | M16 x 1.5 JED – 152 |
| Port thread 4 | M16 x 1.5 JED – 152 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Version | Without test connection |
| GTIN | 04057875301707 |
| Size (mm x mm x mm) | 174 x 172 x 137 |
| UPC | 193133374985 |
| Weight (kg) | 1.55 |
| Weight (lb) | 3.4172 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KRONE | 5817911 |
| KRONE | 58179111 |
| KRONE | 505817911 |
| SCANIA | 2089923 |
| SCHMITZ CARGOBULL | 057016 |
| SCHMITZ CARGOBULL | 57016 |
| SCHMITZ CARGOBULL | INSO120079 |
