Description

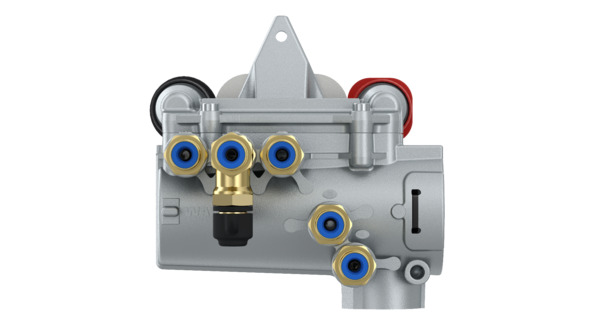

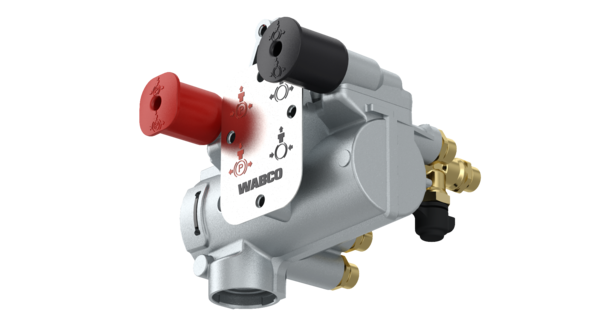

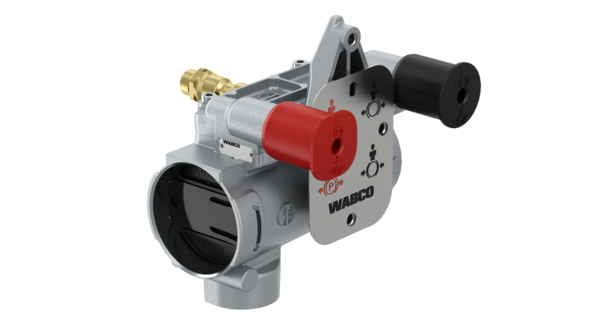

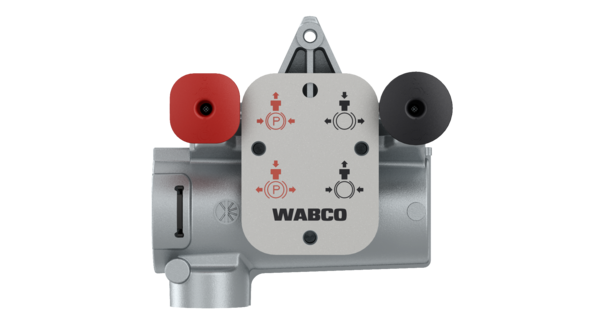

Park Release Emergency Valve
Part Number: 9710029120
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.3597 |
| Color | Black/Red |
| Comments | With plate 9710021034 |
| Max. operating pressure | 10.0 bar |
| Port thread 1-1 | Fitting Ø 8 x 1 (893 800 001 2) |
| Port thread 1-2 | Fitting Ø 8 x 1 (893 129 192 2) |
| Port thread 21 | Fitting Ø 8 x 1 (893 800 001 2) |
| Port thread 22 | Fitting Ø 8 x 1 (893 800 001 2) |
| Port thread 4 | Fitting Ø 8 x 1 (893 800 001 2) |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Version | With Test Connection M16 x 1.5 |
| GTIN | 04057875301783 |
| Size (mm x mm x mm) | 174 x 172 x 212.5 |
| UPC | 193133449928 |
| Weight (kg) | 1.745 |
| Weight (lb) | 3.847 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 0908049 |
| KENWORTH | S971-002-912-0 |
| KÖGEL | 6502259 |
| MERITOR | S9710029120 |
| OTOKAR | AIF2006 |
| PETERBILT | S971-002-912-0 |
| SCANIA | 2089928 |
| SCHWARZMÜLLER | 83636 |
| TIRSAN | 21151103199 |
| ZORZI | 1012019 |
