Description

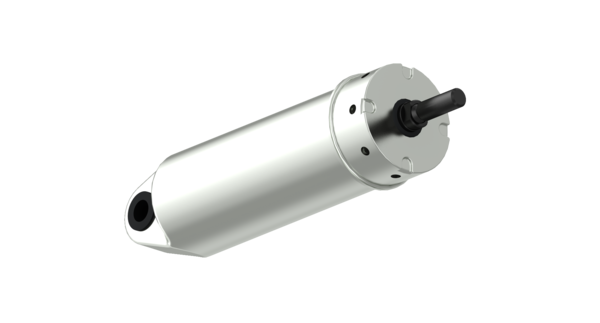

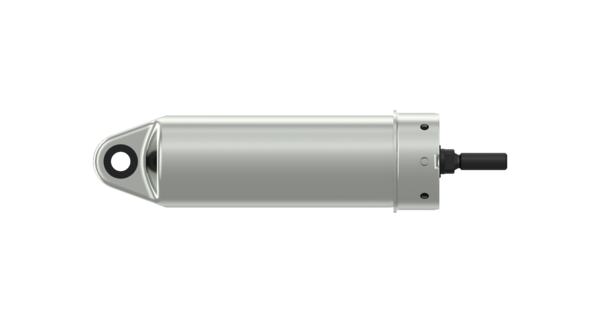

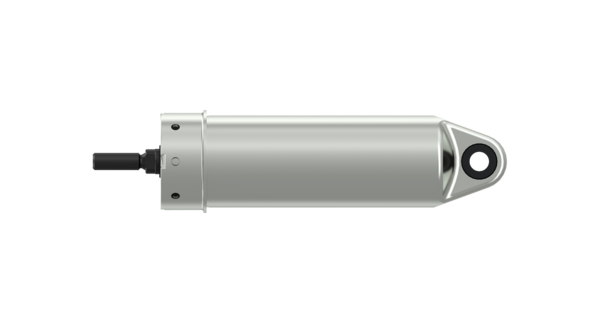

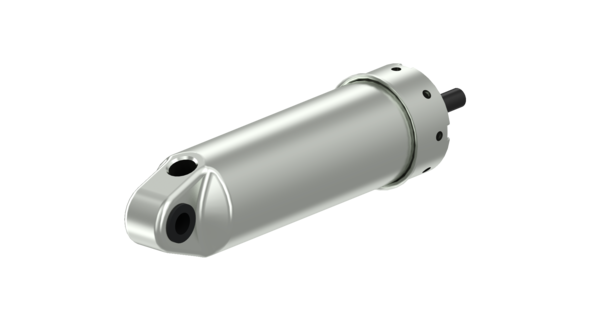

Operating Cylinder
Part Number: 4214113090
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.41904 |
| Comments | Stroke not limited internal |
| Diameter | 43.0 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | Ø 8 mm |
| Output force | 420 N |
| Piston diameter | 35.0 mm |
| Port thread 1 | 1/4″ – 18 NPTF |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Push-rod thread | M8 |
| Return-spring force | 180 N |
| Stroke | 54.0 mm |
| Technical specification | OE specification |
| Temperature range | -25°C to +120°C |
| Total length | 180.0 mm |
| Type | Single-acting Cylinder |
| Wrench size | 9.0 mm |
| GTIN | 04057875160175 |
| Size (mm x mm x mm) | 194 x 45 x 48 |
| UPC | 193133436164 |
| Weight (kg) | 0.442 |
| Weight (lb) | 0.97444 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 6577374 |
| FREIGHTLINER | TDAS4214113090 |
| KENWORTH | S421-411-309-0 |
| MACK | 8235-S4214113090 |
| MACK | 6300-4214113090 |
| MERITOR | S4214113090 |
| PETERBILT | S421-411-309-0 |
| VOLVO | TDAS4214113090 |
| VOLVO | WAB4214113090 |
