Description

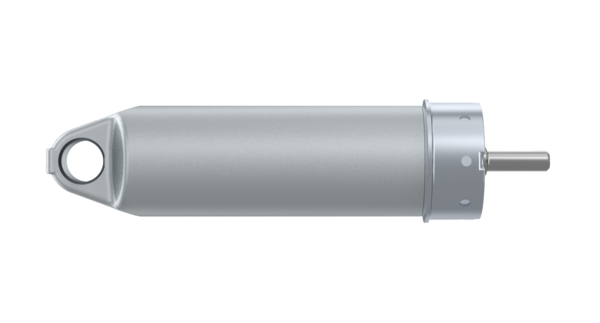

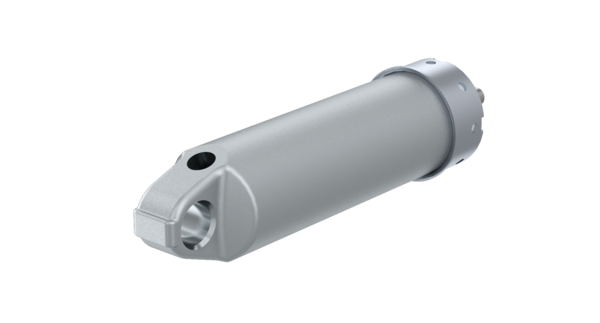

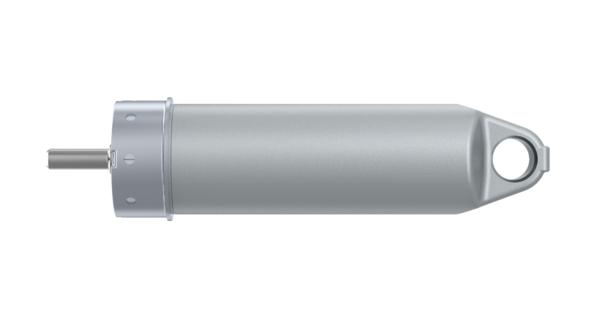

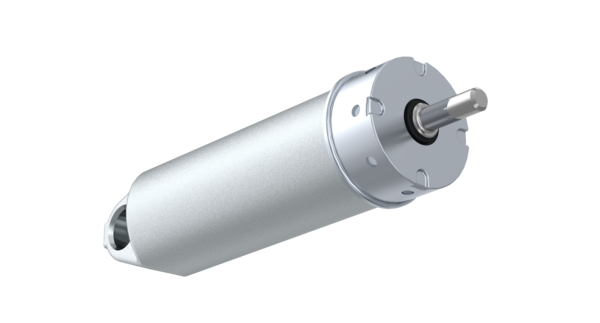

Operating Cylinder
Part Number: 4214113160
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.4212 |
| Diameter | 43.0 mm |
| Inlet port | M12x1.5 |
| Length | 180 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | ø16 mm |
| Piston diameter | 35.0 mm |
| Piston force | 420 N |
| Port thread 1 | M12 x 1.5 |
| Product category | Component |
| Push-rod thread | M8 |
| Return-spring force | 190 N |
| Stroke | 60.0 mm |
| Technical specification | OE specification |
| Temperature range | -25°C to +120°C |
| Total length | 180.0 mm |
| Type | Single-acting Cylinder |
| GTIN | 7895851033047 |
| Size (mm x mm x mm) | 195 x 45 x 48 |
| UPC | 193133479444 |
| Weight (kg) | 0.439 |
| Weight (lb) | 0.96783 |
OEM Cross References
| Brand | Reference No |
|---|---|
| PACCAR | 9500990 |
| SCANIA | 1507790 |
| SCANIA | 1821737 |
