Description

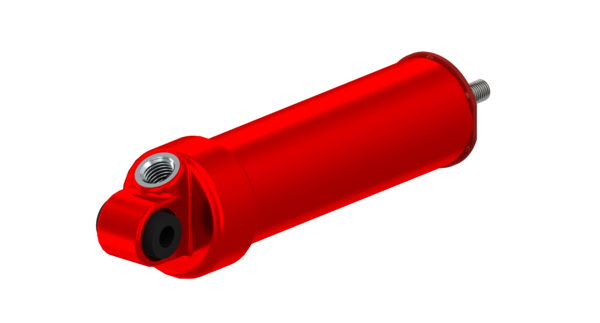

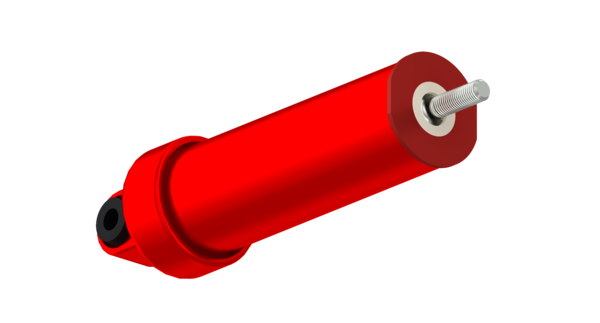

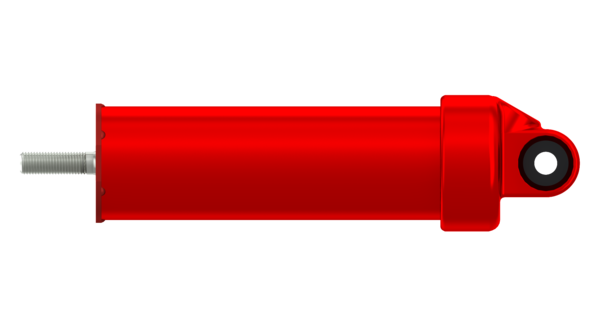

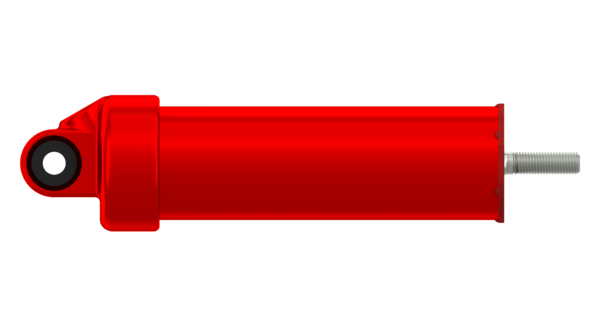

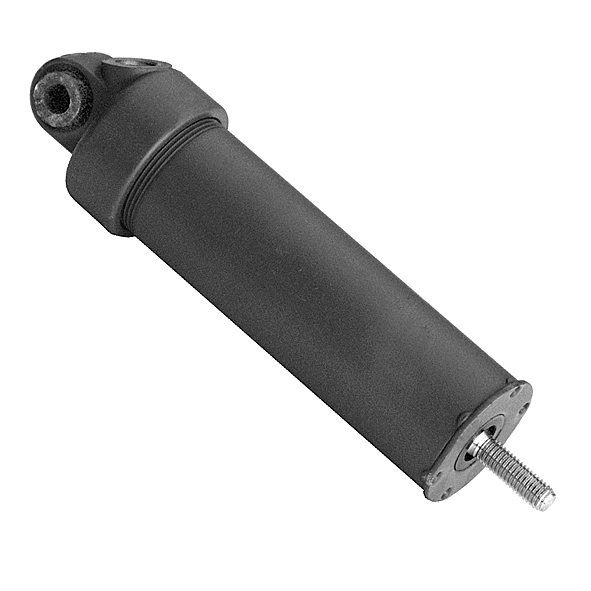

Operating Cylinder
Part Number: 4214110210
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.4512 |
| Comments | Stroke not limited internal |
| Diameter | 40.0 mm |
| Inlet port | M12x1.5 |
| Length | 185 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | Ø 8.2 mm |
| Piston diameter | 35.0 mm |
| Piston force | 470 N |
| Port thread 1 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Push-rod thread | M8 |
| Return-spring force | 247 N |
| Stroke | 65.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 185.0 mm |
| Type | Single-acting Cylinder |
| Wrench size | 40.0 mm |
| GTIN | 04057875160038 |
| Size (mm x mm x mm) | 200 x 47 x 48 |
| UPC | 193133242888 |
| Weight (kg) | 0.657 |
| Weight (lb) | 1.4484 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1517939 |
| ERF | 4011137 |
| EVOBUS | 8283803000 |
| EVOBUS | A0012600363 |
| FAUN | 99700945119 |
| FAUN | 1619058 |
| FAYMONVILLE | 00839 |
| IVECO | 02454370 |
| IVECO | 03495686 |
| IVECO | 41520361 |
| IVECO | 2454370 |
| KOMATSU | 24463240 |
| KÄSSBOHRER | 828380300 |
| MAN | 88157016200 |
| MAN | 90810127152 |
| MAN | 4214110210 |
| MAN | 4011137 |
| MERCEDES-BENZ | 0001440118 |
| MERCEDES-BENZ | 0012600363 |
| MERCEDES-BENZ | A0012600363 |
| NEOPLAN | 110270900 |
| NEOPLAN | 11017423 |
| NEOPLAN | 88157016200 |
| NOOTEBOOM | 305110 |
| O&K | 0945119 |
| O&K | 945119 |
| SCHMITZ CARGOBULL | 828380300 |
| STEYR | 99100360028 |
| TEREX | 24463240 |
