Description

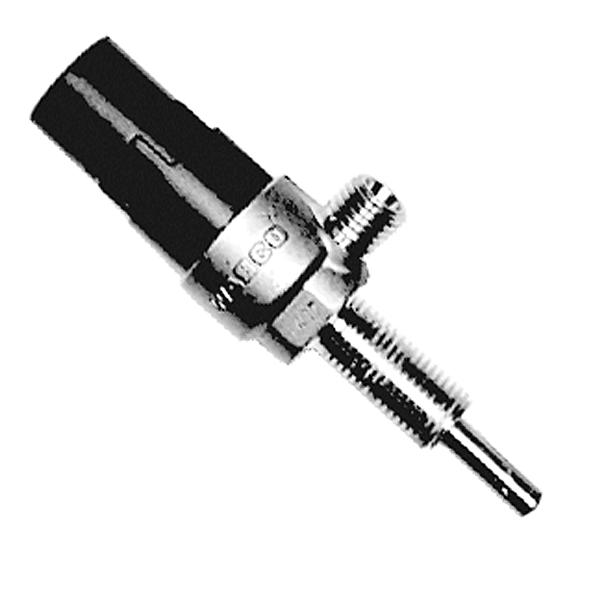

Operating Cylinder
Part Number: 4214440200
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.16317 |
| Diameter | 24.0 mm |
| Inlet port | M12x1.5 |
| Length | 112 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | Bulkhead coupling M 14×1.5 |
| Piston diameter | 20.0 mm |
| Piston force | 86 N |
| Port thread 1 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Push-rod thread | M14 x 1.5 |
| Return-spring force | 68 N |
| Stroke | 15.0 mm |
| Technical specification | OE specification |
| Temperature range | -35°C to +100°C |
| Total length | 112.0 mm |
| Type | Single-acting Cylinder |
| GTIN | 7895851002647 |
| Size (mm x mm x mm) | 49 x 111 x 30 |
| UPC | 193133479550 |
| Weight (kg) | 0.122 |
| Weight (lb) | 0.26896 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506146 |
| EVOBUS | A0000723212 |
| MAN | 99100360458 |
| MERCEDES-BENZ | 0000723212 |
| MERCEDES-BENZ | A0000723212 |
| MERCEDES-BENZ | 0000701583 |
| NEOPLAN | 010866400 |
| NEOPLAN | 10866400 |
| VAN HOOL | 10561391 |
