Description

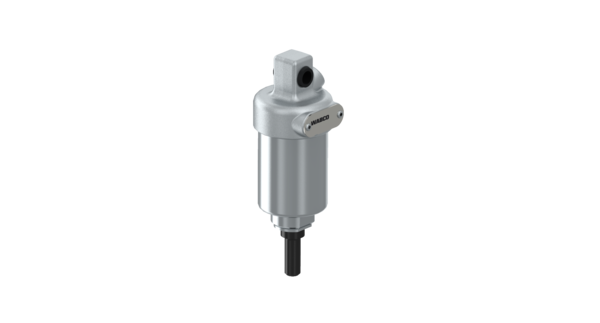

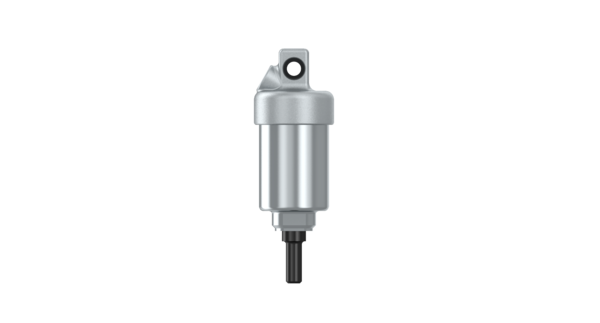

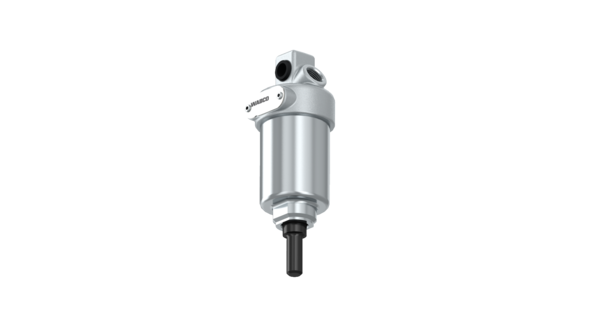

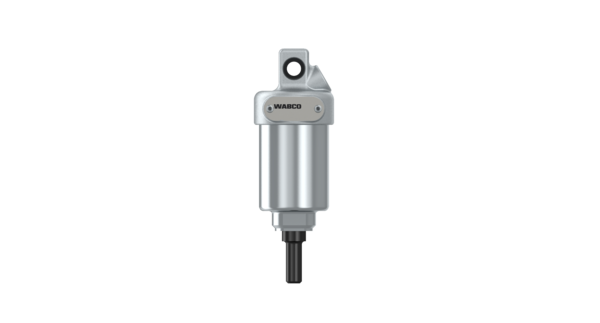

Operating Cylinder
Part Number: 4214100720
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.19656 |
| Diameter | 35.0 mm |
| Inlet port | M10x1 |
| Length | 106 mm |
| Max. operating pressure | 8.0 bar |
| Mounting | Ø 6 mm |
| Piston diameter | 30.0 mm |
| Piston force | 300 N |
| Port thread 1 | M10 x 1 |
| Port threads | M10 x 1 |
| Product category | Device |
| Push-rod thread | M8 |
| Return-spring force | 206 N |
| Stroke | 25.0 mm |
| Technical specification | OE specification |
| Temperature range | -20°C to +80°C |
| Total length | 116.0 mm |
| Type | Single-acting Cylinder |
| Wrench size | 19.0 mm |
| GTIN | 04057875160021 |
| Size (mm x mm x mm) | 117 x 40 x 42 |
| UPC | 193133242765 |
| Weight (kg) | 0.199 |
| Weight (lb) | 0.43872 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAFI | 0005610005 |
