Description

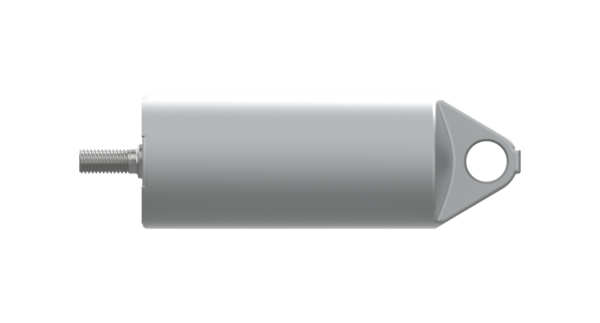

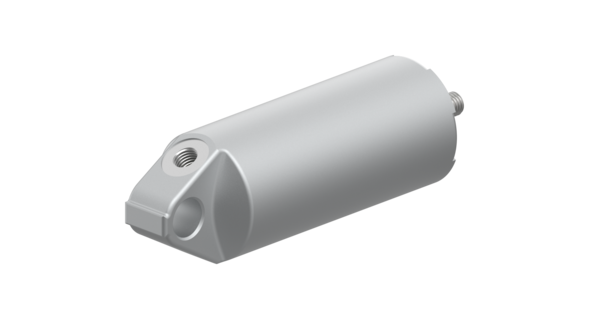

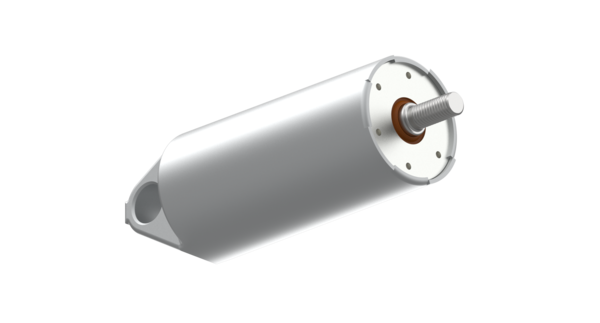

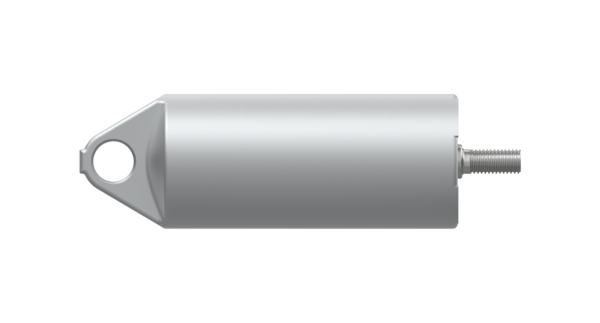

Operating Cylinder
Part Number: 4214115010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.44891 |
| Diameter | 55.0 mm |
| Inlet port | M12x1.5 |
| Length | 167 mm |
| Max. operating pressure | 12.0 bar |
| Mounting | Ø 16.5 |
| Piston diameter | 26 mm |
| Piston force | 98.2 N |
| Port thread 1 | M12 x 1.5 |
| Product category | Device |
| Push-rod thread | M10 |
| Return-spring force | 9.4 N |
| Stroke | 53.0 mm |
| Technical specification | OE specification |
| Temperature range | -25°C to +190°C |
| Total length | 166.5 mm |
| Type | Single-acting Cylinder |
| GTIN | 04057875160182 |
| Size (mm x mm x mm) | 53 x 55 x 154 |
| UPC | 193133479475 |
| Weight (kg) | 0.615 |
| Weight (lb) | 1.3558 |
