Description

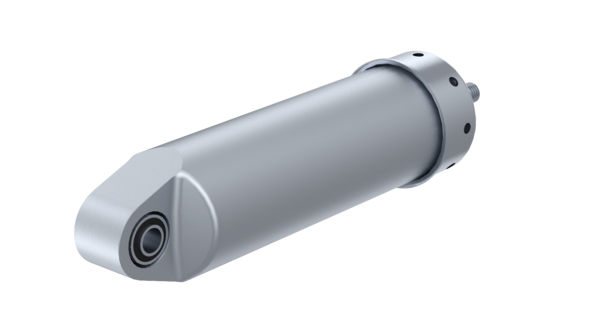

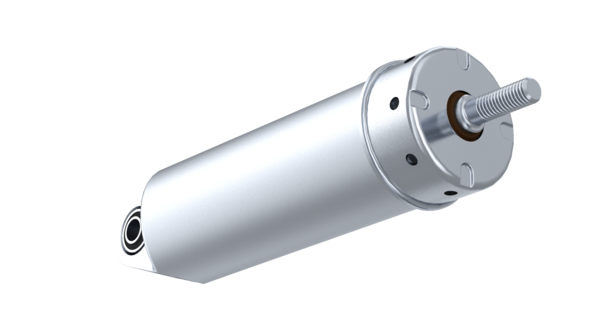

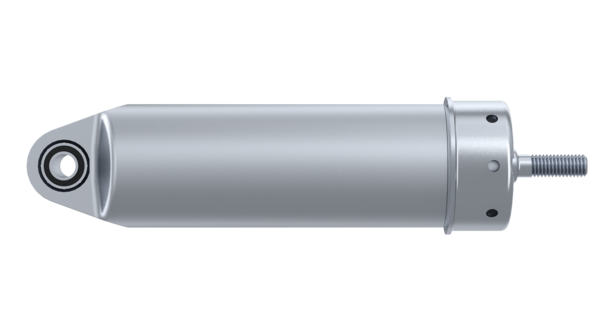

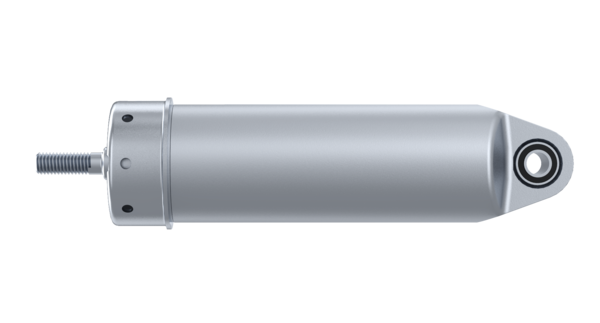

Operating Cylinder
Part Number: 4214113140
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.421 |
| Comments | Stroke not limited internal |
| Diameter | 43.0 mm |
| Inlet port | M12x1.5 |
| Length | 180 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | Ø 8.2 mm |
| Piston diameter | 35.0 mm |
| Piston force | 420 N |
| Port thread 1 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Push-rod thread | M8 |
| Return-spring force | 190 N |
| Stroke | 60.0 mm |
| Technical specification | OE specification |
| Temperature range | -25°C to +120°C |
| Total length | 180.0 mm |
| Type | Single-acting Cylinder |
| GTIN | 7895851001961 |
| Size (mm x mm x mm) | 195 x 45 x 48 |
| UPC | 193133243038 |
| Weight (kg) | 0.452 |
| Weight (lb) | 0.99649 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 6577371 |
| DAF | 1505927 |
| SCANIA | 1400769 |
| SCANIA | 1932608 |
| SCANIA | 1376474 |
| TEREX | 00066612 |
| VOLVO | 20405258 |
