Description

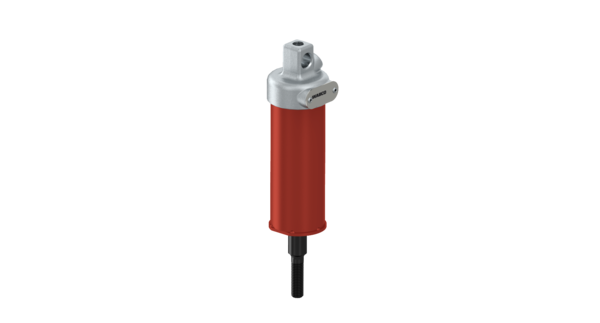

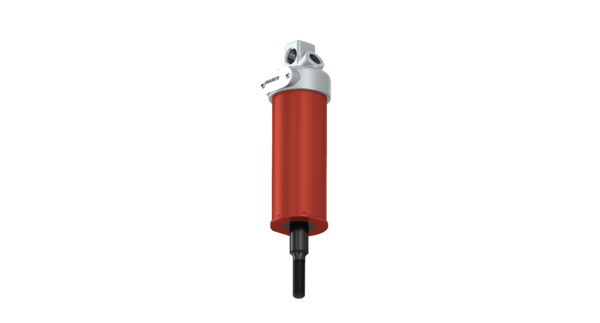

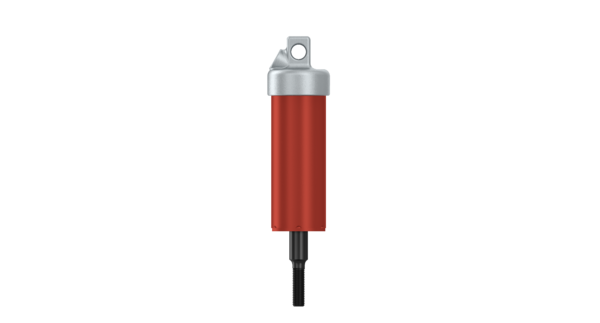

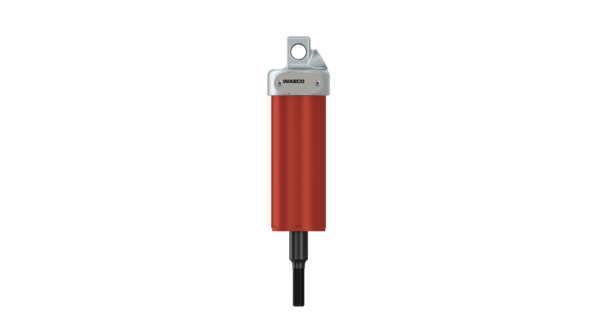

Operating Cylinder
Part Number: 4214100660
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.3557 |
| Comments | Stroke not limited internal |
| Diameter | 35.0 mm |
| Inlet port | M10x1 |
| Length | 172 mm |
| Max. operating pressure | 8.0 bar |
| Mounting | M8 Female |
| Piston diameter | 30.0 mm |
| Piston force | 300 N |
| Port thread 1 | M10 x 1 |
| Port threads | M10 x 1 |
| Product category | Device |
| Push-rod thread | M8 |
| Return-spring force | 180 N |
| Stroke | 45.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 172.0 mm |
| Type | Single-acting Cylinder |
| Wrench size | 34.0 mm |
| GTIN | 04057875159988 |
| Size (mm x mm x mm) | 176 x 47 x 43 |
| UPC | 193133479345 |
| Weight (kg) | 0.441 |
| Weight (lb) | 0.97224 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518609 |
| FAUN | 1619388 |
| MERCEDES-BENZ | 533455101010 |
| STEYR | 533455101010 |
