Description

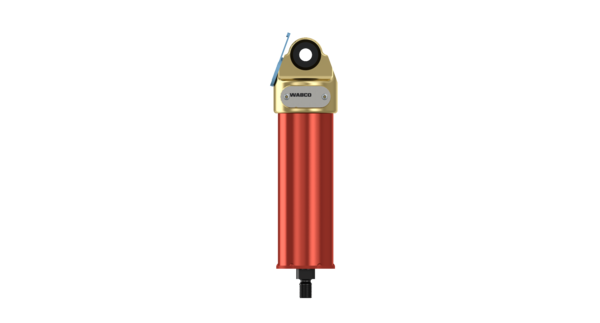

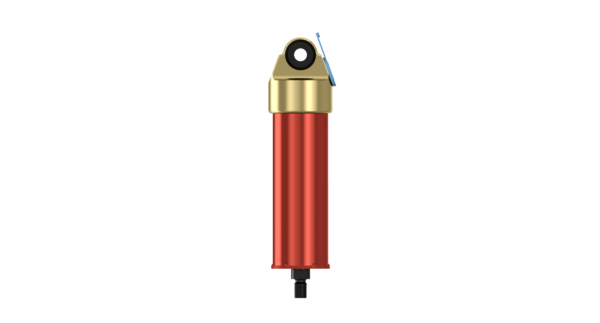

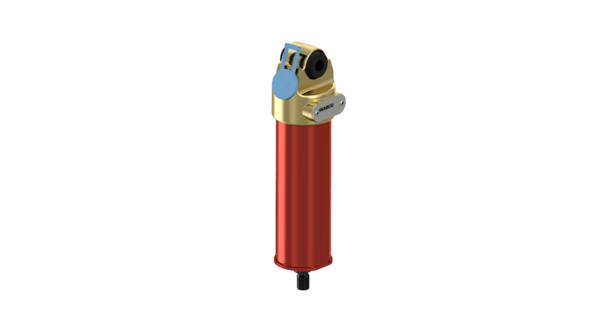

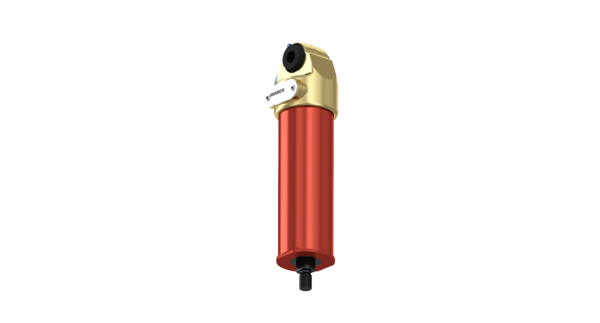

Operating Cylinder
Part Number: 4214100790
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.2952 |
| Comments | Stroke not limited internal |
| Diameter | 35.0 mm |
| Inlet port | M12x1.5 |
| Length | 152 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | Ø 8.2 mm |
| Piston diameter | 30.0 mm |
| Piston force | 290 N |
| Port thread 1 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Push-rod thread | M8 |
| Return-spring force | 100 N |
| Stroke | 56.5 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 152.0 mm |
| Type | Single-acting Cylinder |
| Wrench size | 9.0 mm |
| GTIN | 04057875160045 |
| Size (mm x mm x mm) | 164 x 40 x 45 |
| UPC | 193133479390 |
| Weight (kg) | 0.614 |
| Weight (lb) | 1.3536 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505924 |
| FAYMONVILLE | 01113 |
| FAYMONVILLE | 1113 |
| LANGENDORF | 1264592 |
| ORTHAUS | 49901100000 |
| ORTHAUS | 499002 |
| SCANIA | 2089729 |
