Description

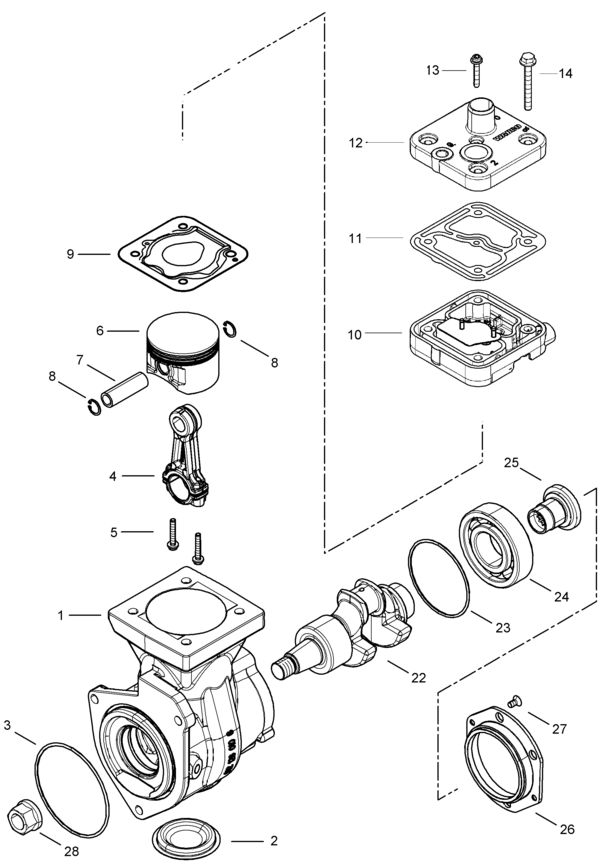

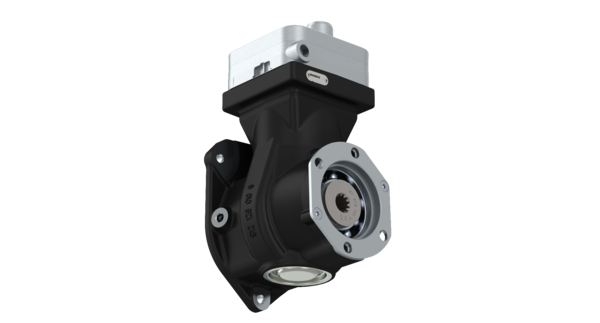

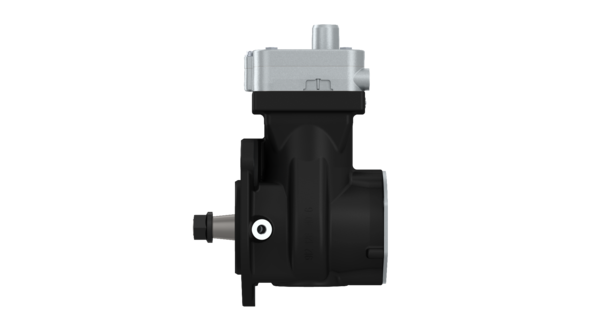

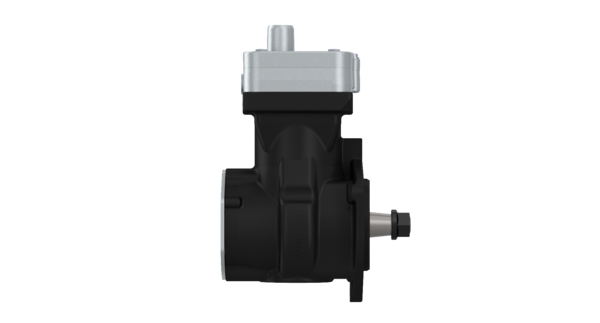

One-Cylinder Compressor
Part Number: 9121260030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 15.391 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 10.0 bar |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85.0 mm |
| Piston stroke | 56 mm |
| Port thread 0 | Ø 30 mm |
| Port thread 2 | M26 x 1.5 |
| Port thread 9.1 | M14 x 1.5 |
| Port thread 9.2 | M14 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 318 cm3 |
| Technical specification | OE specification |
| Temperature range | 30°C+/- 15°C |
| Type | Single Cylinder |
| GTIN | 04057875274063 |
| Size (mm x mm x mm) | 233 x 202 x 327 |
| Weight (kg) | 12.462 |
