Description

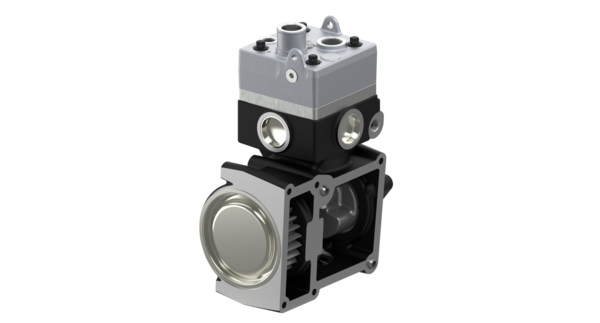

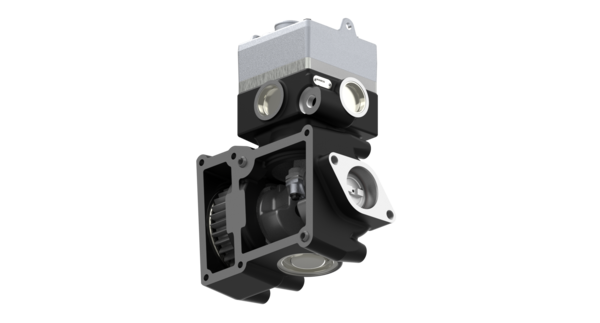

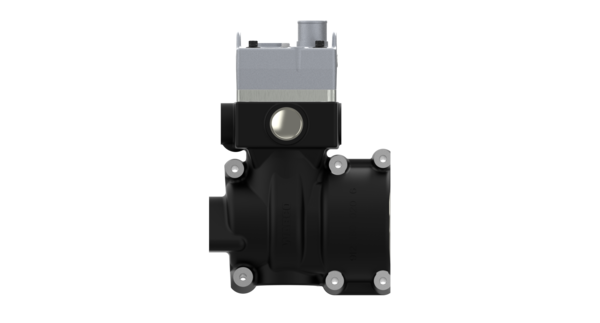

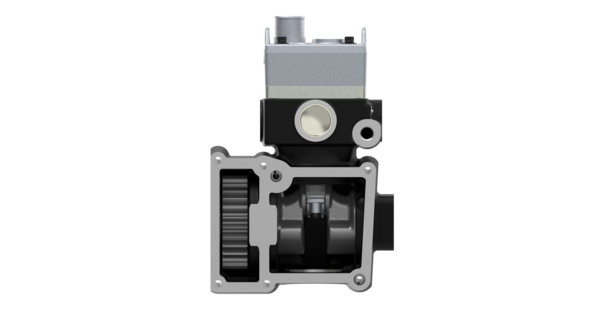

One-Cylinder Compressor –85 CNHTC
Part Number: 9121600010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0 |
| Cooling | Water |
| Crankshaft thread | M22 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 12.5 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85.0 mm |
| Piston stroke | 56 mm |
| Port thread 0 | M26 x 1.5 |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | Ø 13.0 mm |
| Port thread 9 | M16 x 1.5 |
| Port thread 9.1 | M16 x 1.5 |
| Port thread 9.2 | M16 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 318 cm3 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Single Cylinder |
| GTIN | 04057875274186 |
| Weight (kg) | 0.001 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SINOTRUK (CNHTC) | 201V54100-7121 |
