Description

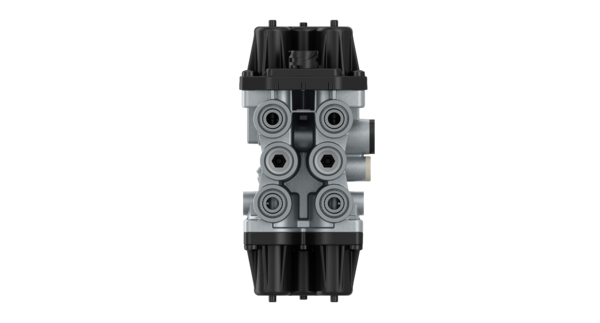

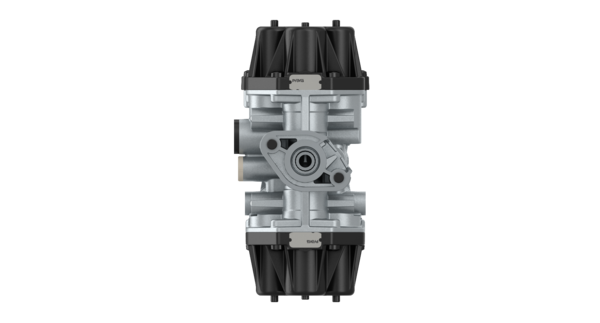

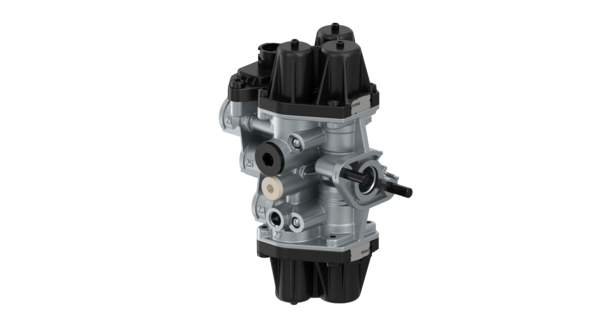

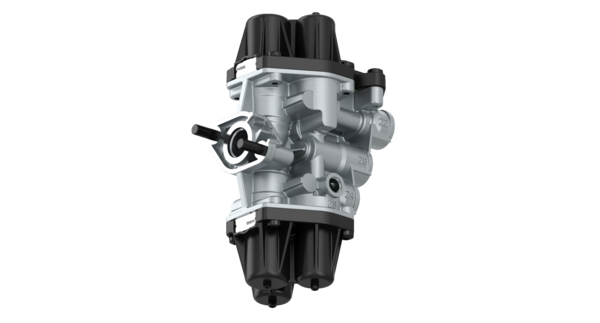

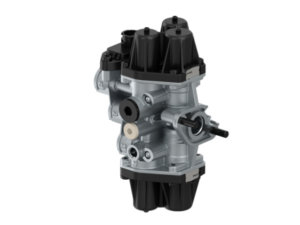

Multiple-Circuit Protection Valve
Part Number: PRO9340050
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 7.65 |
| Charging pressure | 4.5 bar |
| Closing pressure dynamic 21 | 7.0 bar |
| Closing pressure dynamic 22 | 7.0 bar |
| Closing pressure dynamic 23 | 4.5 bar |
| Closing pressure dynamic 24 | 4.5 bar |
| Comments | Pressure limit 10.0 (circuit 1+2), 8.5 (circuit 3+4) |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 9 bar |
| Opening pressure 22 | 9 bar |
| Opening pressure 23 | 7.5 bar |
| Opening pressure 24 | 7.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 22 | M22 x 1.5 |
| Port thread 23 | M12 x 1.5 |
| Port thread 24 | M12 x 1.5 |
| Port thread 26 | M22 x 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Technical specification | AM specification |
| GTIN | 04057877003234 |
| Size (mm x mm x mm) | 250 x 180 x 170 |
| UPC | 193134005482 |
| Weight (kg) | 1.838 |
| Weight (lb) | 4.052 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505128 |
| DAF | 1519211R |
| EVOBUS | A0034315706 |
| MAN | ZG046430002 |
| MERCEDES-BENZ | A0034315406 |
| MERCEDES-BENZ | A0034315706 |
| MERCEDES-BENZ | A0034316106 |
| MERCEDES-BENZ | A0034316806 |
| RENAULT | 5021170905 |
| SCANIA | 1935509 |
| SCANIA | 1935510 |
