Description

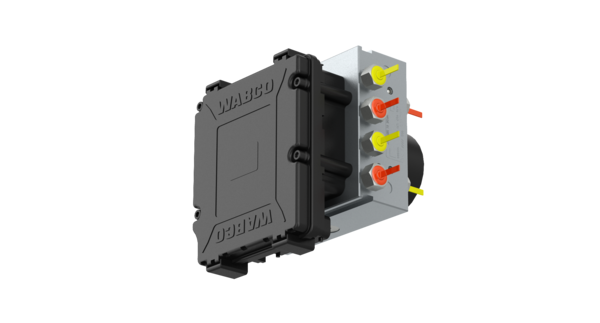

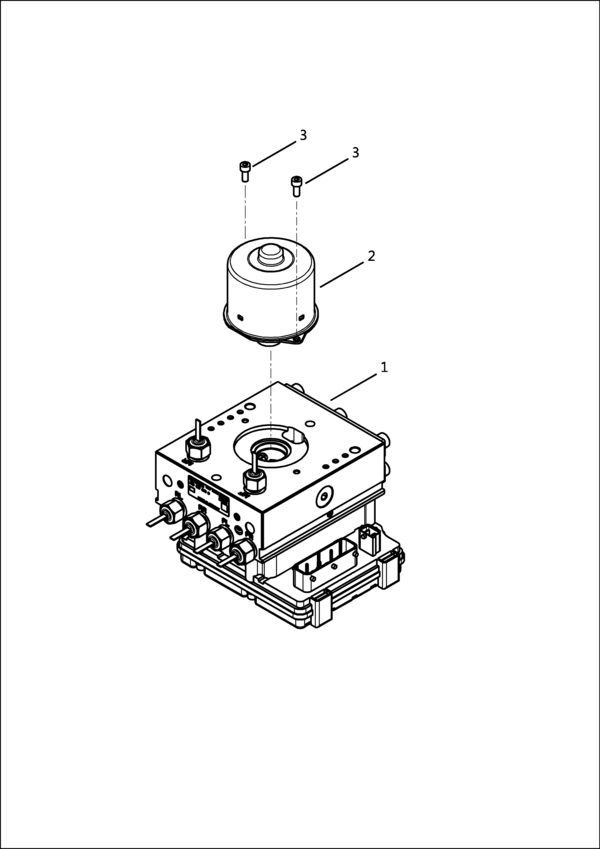

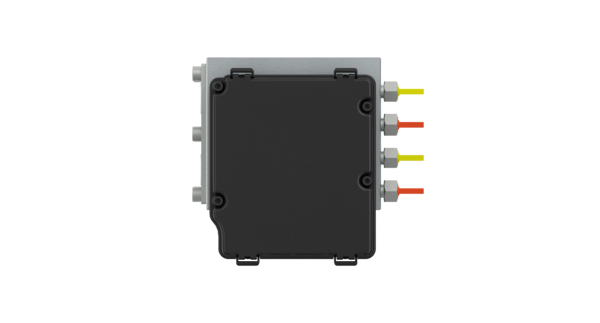

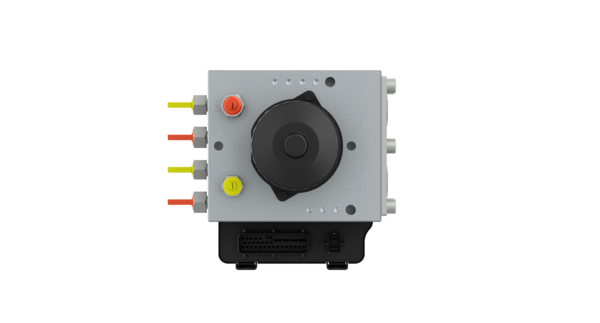

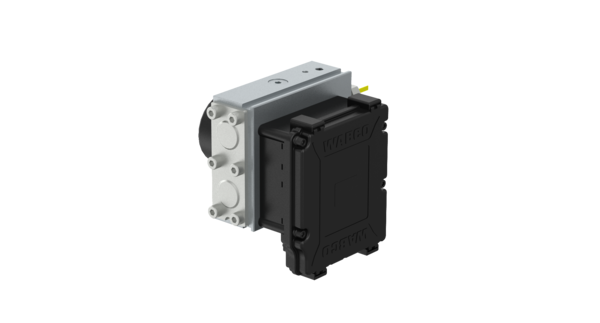

Modulator
Part Number: 4784070710
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.1263 |
| Distance between holes | 112×108/90 mm |
| Medium | Brake fluid FMVSS 116 |
| Mounting | 3 x 3/8″ – 16 UNC-2B |
| Port thread FL | 7/16″ – 24 UNS-2B |
| Port thread FR | 1/2″ – 20 UNF-2B |
| Port thread MF | 7/16″ – 24 UNS – 2B |
| Port thread MR | 1/2″ – 20 UNF-2B |
| Port thread RL | 7/16″ – 24 UNS-2B |
| Port thread RR | 1/2″ – 20 UNF-2B |
| Product category | Device |
| Protection class | IP 6K9K |
| Technical specification | OE specification |
| Temperature range | -40°C to +85°C |
| Voltage | 12 V |
| GTIN | 04057875227694 |
| Size (mm x mm x mm) | 179 x 185 x 185 |
| UPC | 193133444626 |
| Weight (kg) | 5.5 |
| Weight (lb) | 12.125 |
OEM Cross References
| Brand | Reference No |
|---|---|
| INTERNATIONAL | S47840708710 |
| KENWORTH | S478-407-071-0 |
| MACK | 8235-S4784070710 |
| MACK | 6300-4784070710 |
| MERITOR | S4784070710 |
| PETERBILT | S478-407-071-0 |
| VOLVO | WAB4784070710 |
