Description

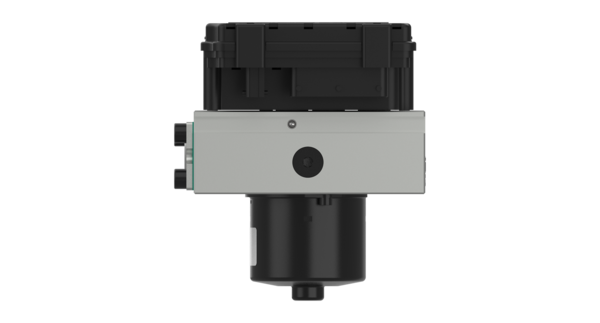

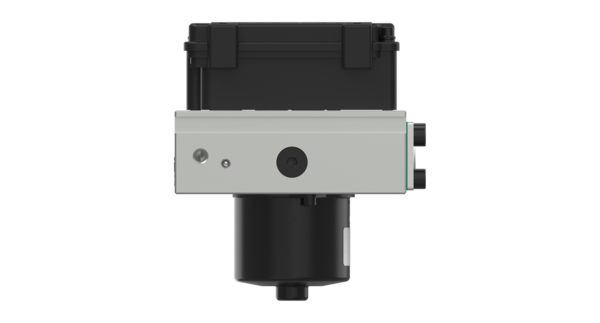

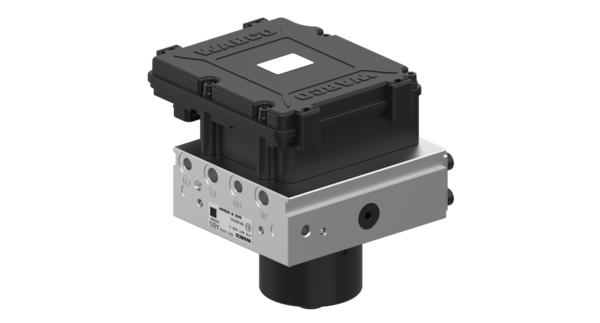

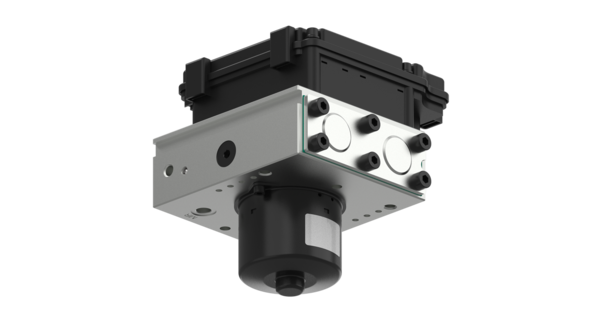

Modulator
Part Number: 4784070480
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Ashok Leyland |
| Calculated Volume (dm³) | 13.728 |
| Diagnostic | KWP 2000/SAE J1939 |
| Distance between holes | 112×108/90 mm |
| Medium | Brake fluid FMVSS 116 |
| Mounting | 3 x M10 |
| Operating pressure | 150.0 bar |
| Port thread FL | M12 x 1 |
| Port thread FR | M10 x 1 |
| Port thread MF | M12 x 1 |
| Port thread MR | M12 x 1 |
| Port thread RL | M12 x 1 |
| Port thread RR | M10 x 1 |
| Product category | Device |
| Protection class | IP 6K9K |
| Technical specification | OE specification |
| Temperature range | -40°C to +85°C |
| Type | 4S/4M |
| Voltage | 24 V |
| GTIN | 04057875227649 |
| Size (mm x mm x mm) | 240 x 260 x 220 |
| UPC | 193133315384 |
| Weight (kg) | 5.54 |
| Weight (lb) | 12.214 |
