Description

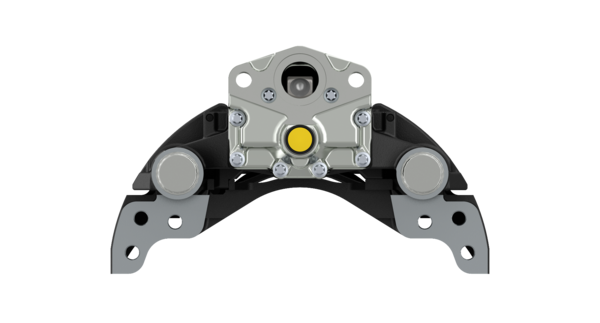

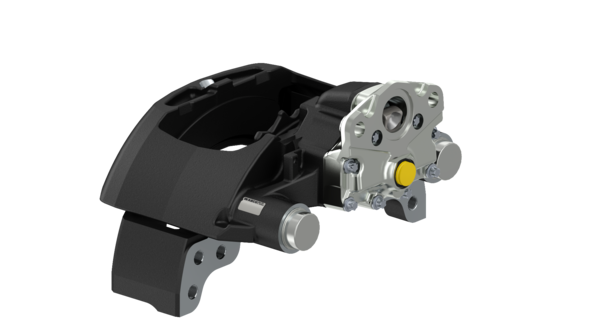

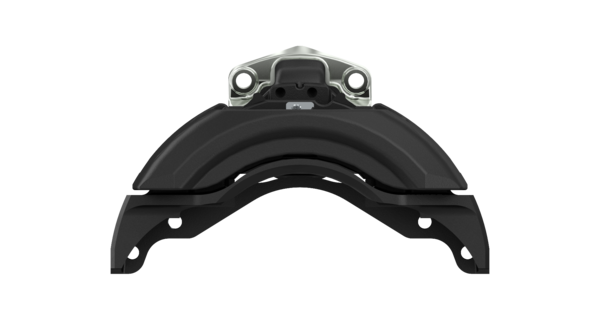

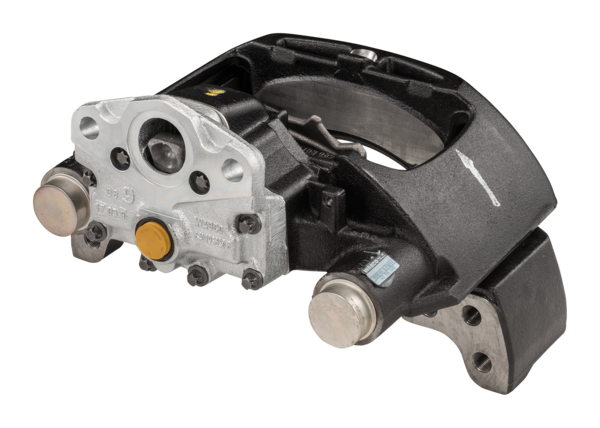

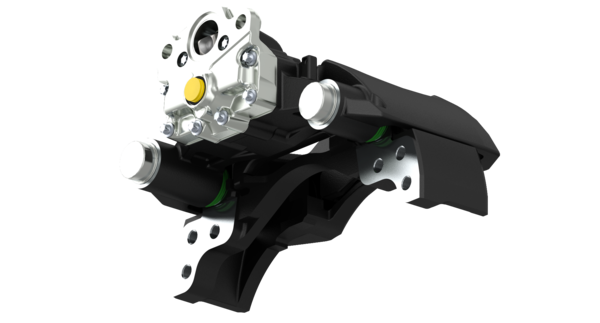

Mech. Operated Floating Caliper Brake
Part Number: 40195040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Brake disc | 45 mm |
| Calculated Volume (dm³) | 30.537 |
| Diameter | 375.0 mm |
| Electrical connection | Socket |
| Mounting | 4x M12 x 1.5 |
| Product category | Device |
| Side of mounting | Right |
| Stroke | 24.5 mm |
| Technical specification | OE specification |
| Type | PAN 19-1 Plus |
| Version | Without Pads |
| GTIN | 04057875154099 |
| Size (mm x mm x mm) | 406 x 245 x 307 |
| UPC | 193133227083 |
| Weight (kg) | 27.956 |
| Weight (lb) | 61.6324 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 6597431 |
| ALEXANDER DENNIS | 659743 |
