Description

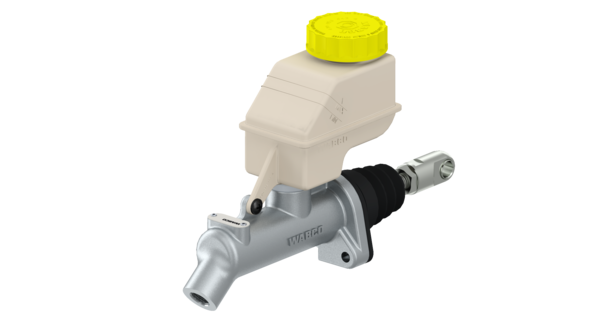

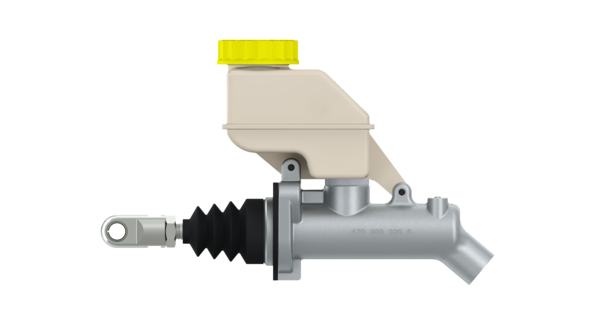

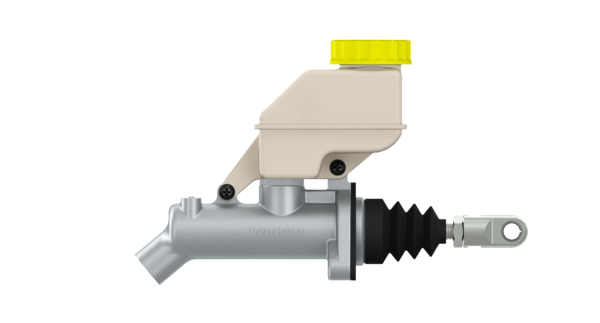

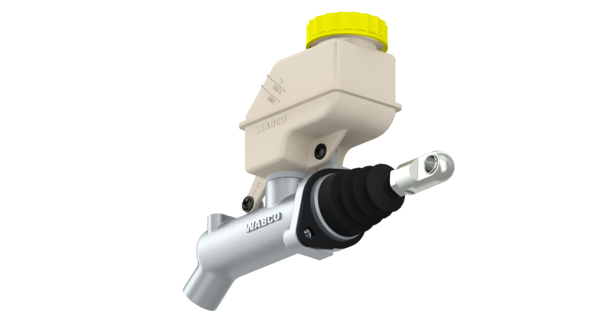

Master cylinder
Part Number: 4700530290
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 2.1277 |
| Distance between holes | 62 mm |
| Max. operating pressure | 10.0 bar |
| Medium | DOT 3 – DOT 4, SAE J 1703 |
| Mounting | 2 x M8 x 1.25 |
| Port thread 2 | M14 x 1.5 |
| Product category | Device |
| Push-rod thread | M10 x 1.5 |
| Stroke | 35.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875217138 |
| Size (mm x mm x mm) | 238 x 149 x 60 |
| UPC | 193133405900 |
| Weight (kg) | 0.514 |
| Weight (lb) | 1.1332 |
