Description

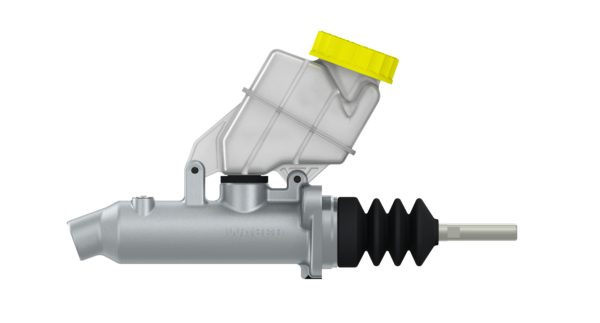

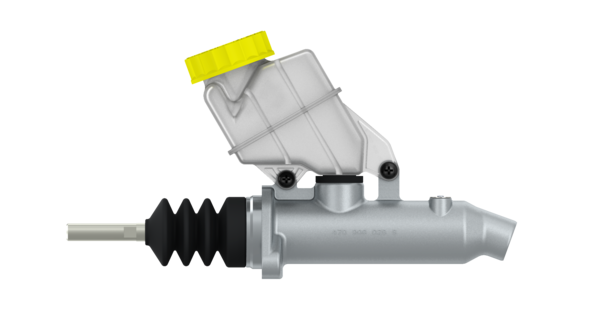

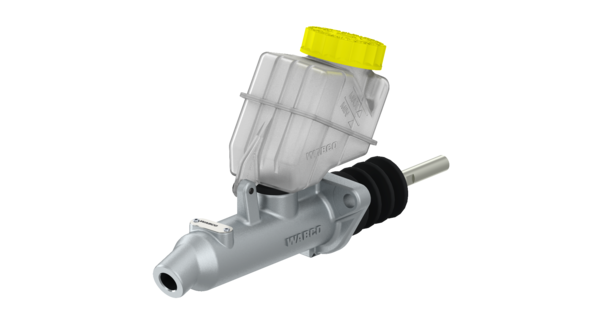

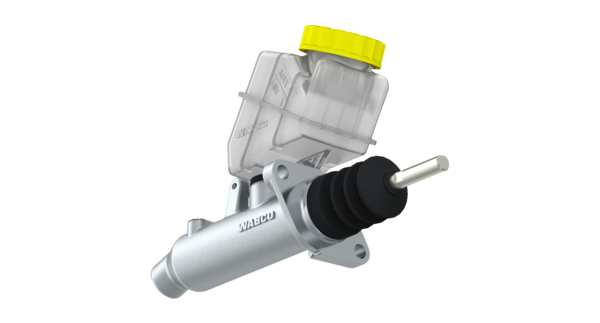

Master cylinder
Part Number: 4700530350
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0 |
| Distance between holes | 70 mm |
| Max. operating pressure | 120.0 bar |
| Mounting | 2 x Ø 9.0 mm |
| Oil inlet | DOT 3, DOT 4, SAE J 1703 |
| Port thread 2 | M14 x 1.5 |
| Product category | Device |
| Push-rod thread | M10 x 1 |
| Stroke | 36.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875217169 |
| Weight (kg) | 0.001 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DONGFENG (DFM) | 1604005-H0200 |
