Description

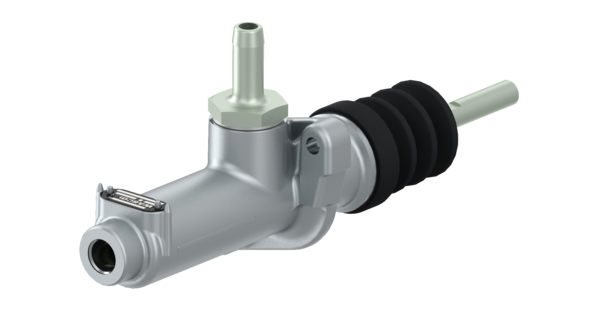

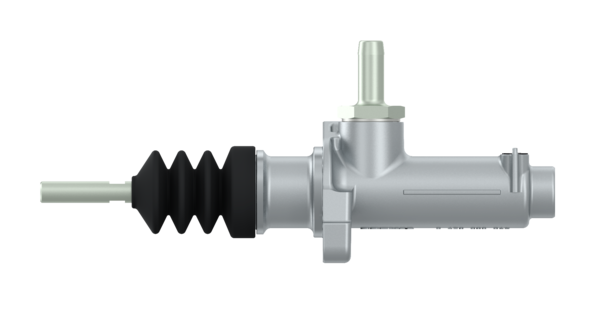

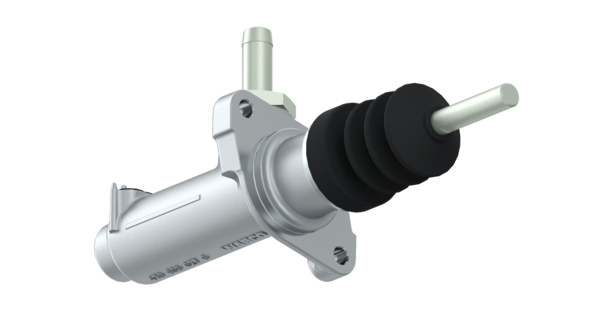

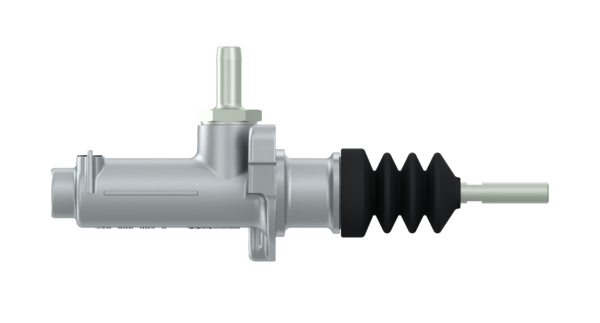

Master cylinder
Part Number: 4700530050
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.1495 |
| Distance between holes | 70 mm |
| Max. operating pressure | 100.0 bar |
| Mounting | 2 x M8 x 1.25 |
| Oil inlet | DOT 3, DOT 4, SAE J 1703 |
| Port thread 2 | M14 x 1.5 |
| Product category | Device |
| Push-rod thread | Ball R4 |
| Stroke | 37.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875217121 |
| Size (mm x mm x mm) | 190 x 110 x 55 |
| UPC | 193133309987 |
| Weight (kg) | 0.474 |
| Weight (lb) | 1.045 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ANKAI | W20802.02700.01W |
| KING LONG | 216400006 |
| SUNWIN | SWB413650033 |
