Description

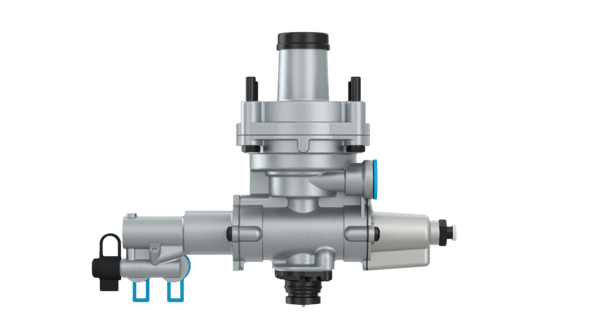

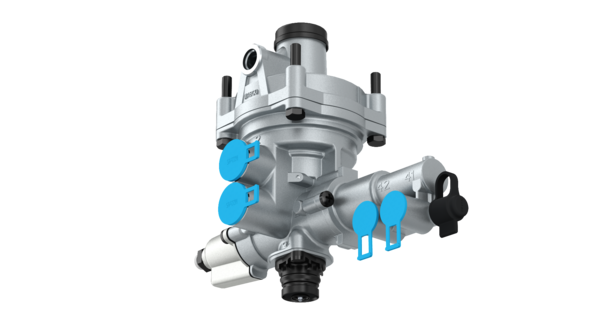

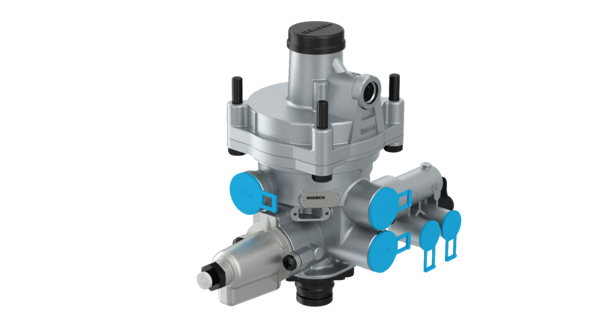

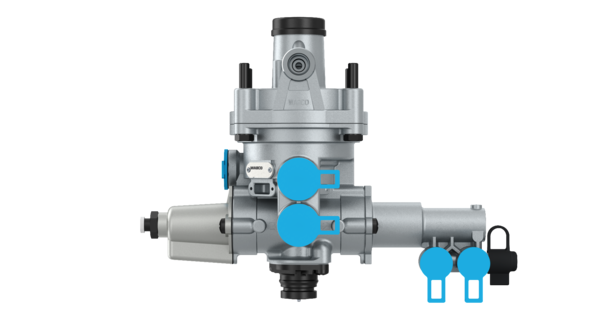

LSV Relay – pneu.
Part Number: 4757110360
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 0.5 bar |
| Calculated Volume (dm³) | 7.59 |
| Distance between bolts | 84×84 mm |
| Exhaust | Snap-on contour JED – 463 |
| Max. operating pressure | 13.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port thread 4 | M16 x 1.5 JED – 388 |
| Product category | Device |
| Range of adjustment | 0.3 to 4.8 bar |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Relay Valve |
| GTIN | 04057875224969 |
| Size (mm x mm x mm) | 110 x 300 x 230 |
| UPC | 193133262831 |
| Weight (kg) | 1.905 |
| Weight (lb) | 4.1998 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ERF | 1136283 |
| MAN | 1136283 |
| RENAULT | 5010136029 |
| RENAULT | 1957454 |
| RENAULT | 0001957454 |
