Description

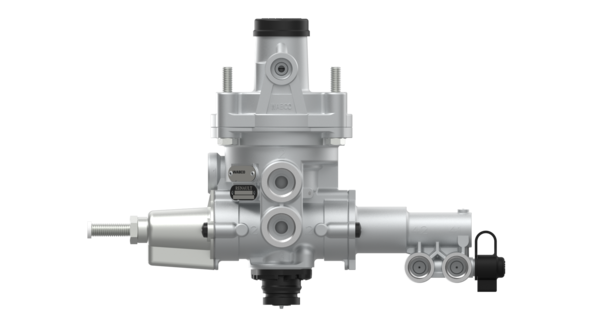

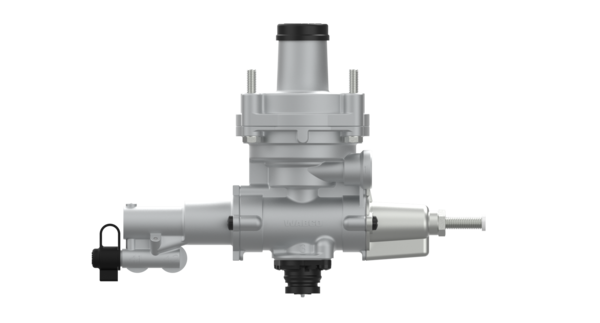

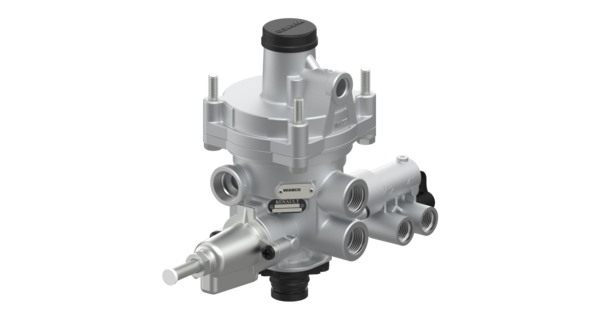

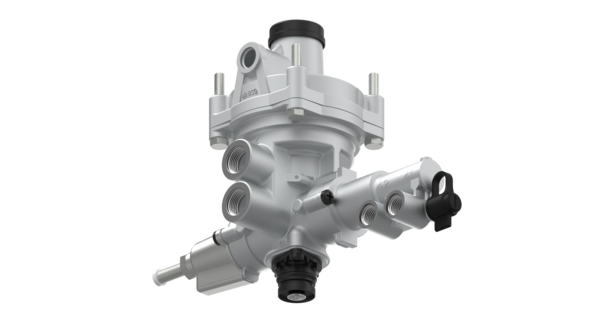

LSV Relay – pneu.
Part Number: 4757110467
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 0.5 bar |
| Calculated Volume (dm³) | 7.92 |
| Distance between bolts | 84×84 mm |
| Exchange unit for | 4757110460 |
| Exhaust | Snap-on contour JED – 463 |
| Max. operating pressure | 13.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port thread 4 | M16 x 1.5 JED – 388 |
| Product category | Device |
| Range of adjustment | 0.6 to 6.0 bar |
| Regulating ratio | 1:12.5 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Relay Valve |
| GTIN | 04057875225089 |
| Size (mm x mm x mm) | 120 x 220 x 300 |
| UPC | 193133314370 |
| Weight (kg) | 1.9 |
| Weight (lb) | 4.1888 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518967R |
| SCANIA | 1935088 |
