Description

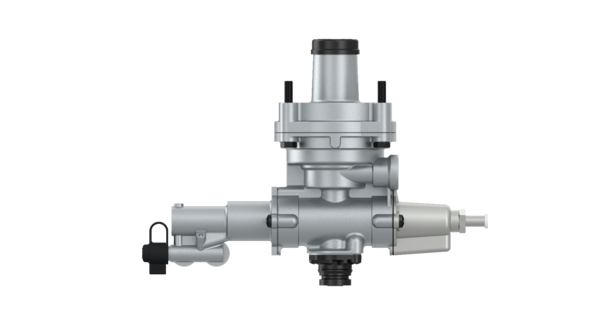

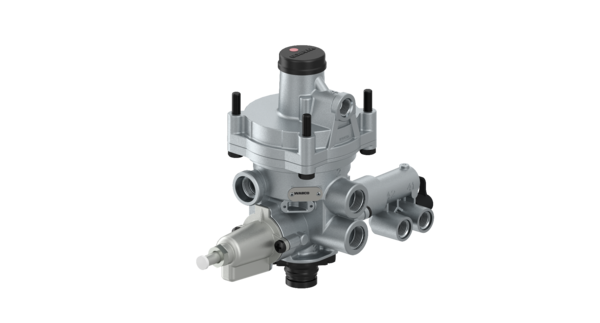

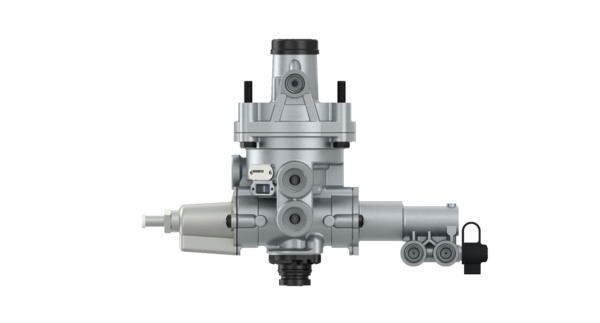

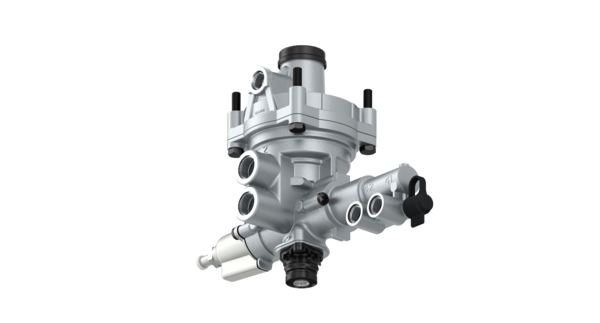

LSV Relay – pneu.
Part Number: 4757110870
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 0.5 bar |
| Calculated Volume (dm³) | 8.5386 |
| Control pressure | 13 bar |
| Distance between bolts | 84×84 mm |
| Exhaust | Snap-on contour JED – 463 |
| Inlet pressure | 10.0 bar |
| Max. operating pressure | 10.0 bar |
| Mounting | 4x M8 |
| Operational range | 0.3 to 4.0 bar |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 2 | M22 x 1.5 JED – 152 |
| Port thread 4 | M16 x 1.5 JED – 388 |
| Port thread 41 | M16 x 1.5 JED-388 |
| Port thread 42 | M16 x 1.5 JED-388 |
| Product category | Device |
| Range of adjustment | 0.3 to 4.0 bar |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Dynamic |
| GTIN | 04057875225249 |
| Size (mm x mm x mm) | 313 x 220 x 124 |
| UPC | 193133314493 |
| Weight (kg) | 1.899 |
| Weight (lb) | 4.1866 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505105 |
| ERF | 1083907 |
| MAN | N2509990142 |
| MAN | 4757110870 |
| MAN | 1083907 |
| PACCAR | 1505105 |
| SCANIA | 2090014 |
