Description

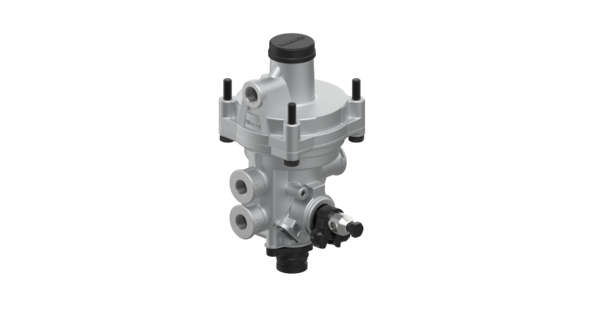

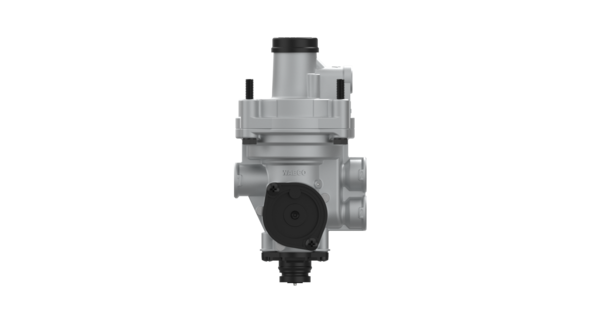

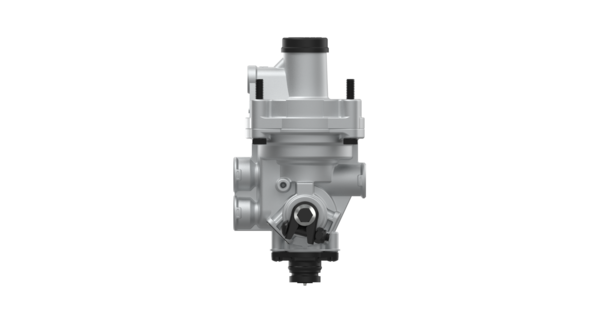

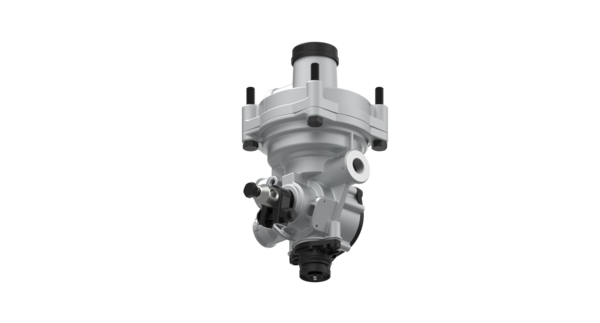

LSV Relay – mechanical
Part Number: 4757100207
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | -45° to +30° |
| Break point | 0.7 bar |
| Calculated Volume (dm³) | 3.477 |
| Distance between bolts | 84×84 mm |
| Exchange unit for | 4757100200 |
| Exhaust | Snap-on contour |
| Max. operating pressure | 13.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M16 x 1.5 JED-152 |
| Port thread 2 | M16 x 1.5 JED – 152 |
| Port thread 4 | M16 x 1.5 JED – 152 |
| Product category | Device |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Mechanical |
| Type of operation | Relay Valve |
| GTIN | 04057875224167 |
| Size (mm x mm x mm) | 123 x 228 x 124 |
| UPC | 193133483311 |
| Weight (kg) | 1.616 |
| Weight (lb) | 3.5627 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505099R |
| EVOBUS | A00143133120080 |
| MAN | N2509999131 |
| MERCEDES-BENZ | 001431331280 |
| MERCEDES-BENZ | A00143133120080 |
| MERCEDES-BENZ | 00143133120080 |
| PACCAR | 1505099R |
| RENAULT | 5021170216 |
| SCANIA | 1935062 |
