Description

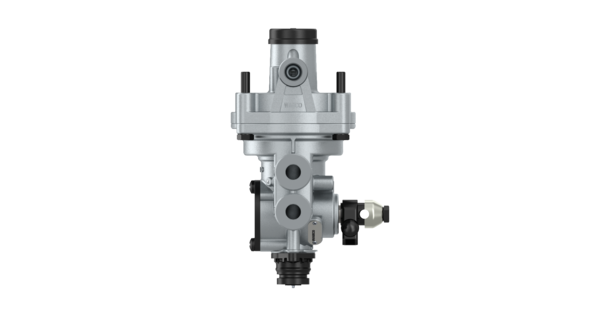

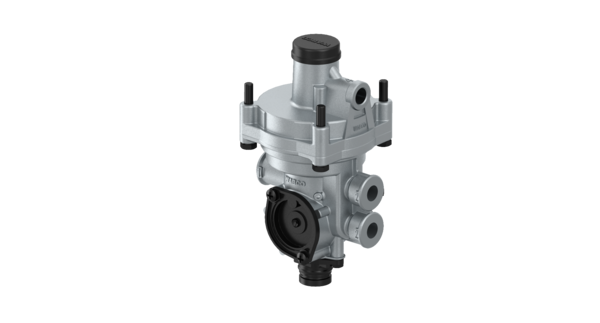

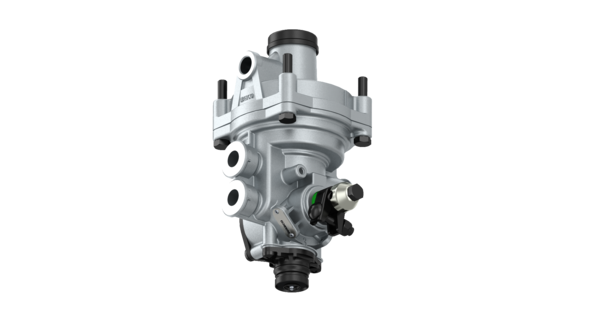

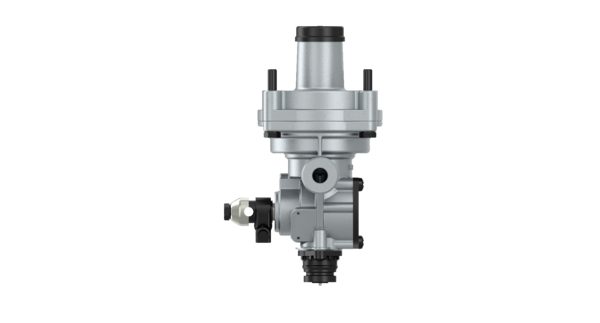

LSV Relay – mechanical
Part Number: 4757101300
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | -45° to +30° |
| Break point | 0.6 bar |
| Calculated Volume (dm³) | 3.168 |
| Distance between bolts | 84×84 mm |
| Exhaust | Snap-on contour |
| Max. operating pressure | 10.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Product category | Device |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Mechanical |
| Type of operation | Relay Valve |
| GTIN | 04057875224518 |
| Size (mm x mm x mm) | 120 x 120 x 220 |
| UPC | 193133483595 |
| Weight (kg) | 1.64 |
| Weight (lb) | 3.6156 |
OEM Cross References
| Brand | Reference No |
|---|---|
| IRISBUS | 500006542 |
| IVECO | 500006542 |
| MAN | 81521616339 |
| MAN | 81521616340 |
| MAN | 81521616345 |
| MAN | 81521619340 |
| MAN | 81521616308 |
| MAN | 81521616310 |
| MAN | 82521616024 |
| NEOPLAN | 81521616340 |
| SCANIA | 1935070 |
