Description

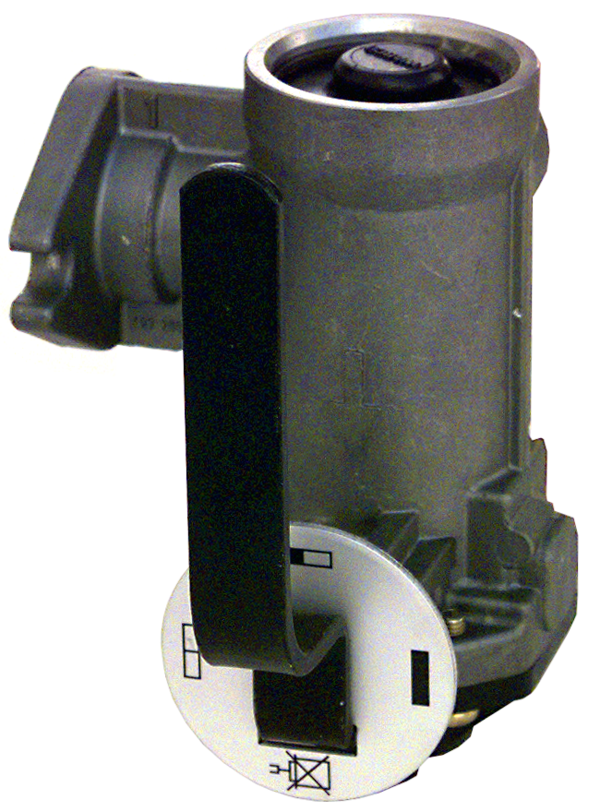

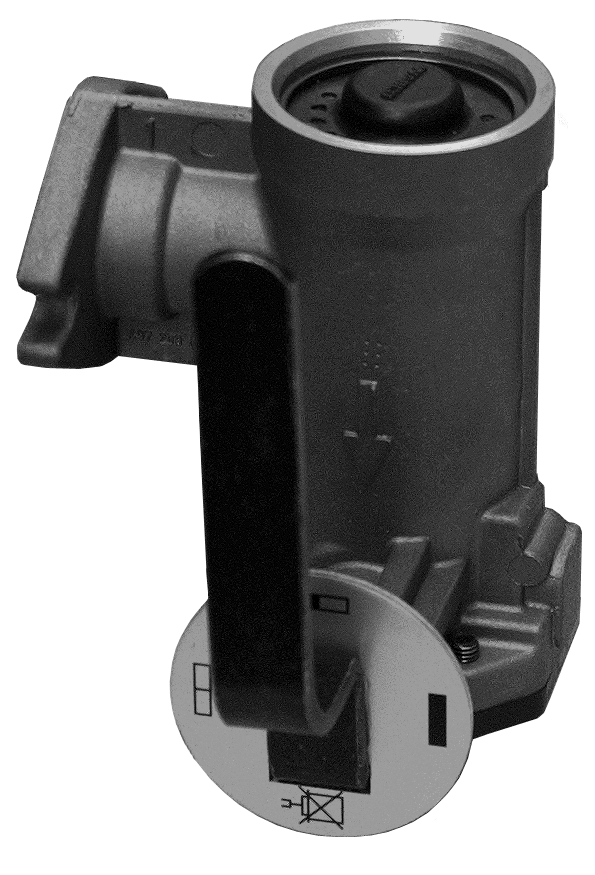

LSV Manual
Part Number: 4756040500
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.892 |
| Distance between bolts | 56.5 mm |
| Mounting | Flange DIN 71501 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Range of adjustment | 0.8 to 1.7 / 4.8 to 5.5 bar |
| Technical specification | OE specification |
| Type | Mechanical |
| Type of operation | Dynamic |
| GTIN | 04057875223412 |
| Size (mm x mm x mm) | 150.14 x 140 x 90 |
| UPC | 193133420712 |
| Weight (kg) | 0.61 |
| Weight (lb) | 1.3448 |
OEM Cross References
| Brand | Reference No |
|---|---|
| LANGENDORF | 1111715 |
| SCHWARZMÜLLER | 3719 |
