Description

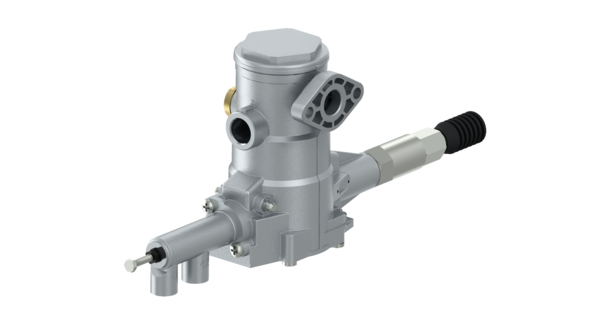

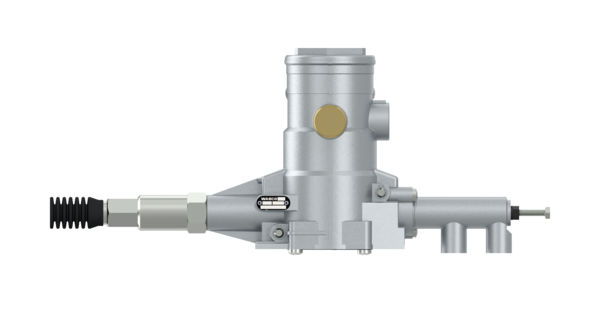

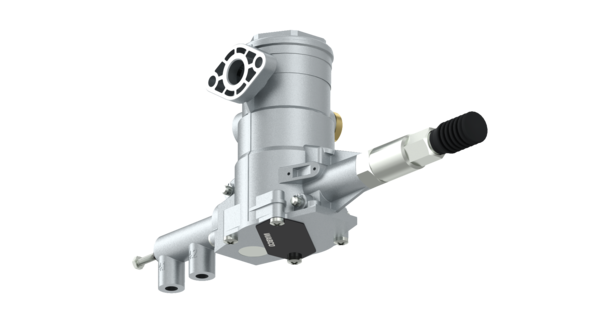

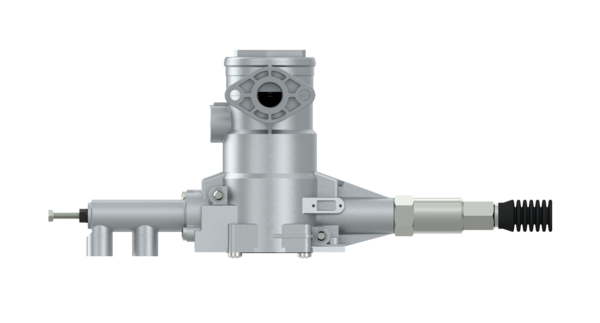

LSV Auto, pneumatical
Part Number: 4757004037
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 0.4 bar |
| Calculated Volume (dm³) | 8.583 |
| Distance between bolts | 56.5 mm |
| Exchange unit for | 4757004030 |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø9.0 mm |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port thread 4 | M12 x 1.5 |
| Product category | Device |
| Range of adjustment | 0.7 to 3.8 bar |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Dynamic |
| GTIN | 04057875223627 |
| Size (mm x mm x mm) | 432 x 179 x 111 |
| UPC | 193133483175 |
| Weight (kg) | 2.23 |
| Weight (lb) | 4.9163 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 0480579R |
| EVOBUS | 89130901274 |
| FRUEHAUF | CF351301E15 |
| LANGENDORF | 1216163 |
| MAN | 81521619221 |
| MAN | N2521619100 |
| MAN | 4757004037 |
| NOOTEBOOM | 0308075 |
| PACCAR | 0480579R |
| RENAULT | 5021170210 |
| SCANIA | 579049 |
| SCANIA | 0579049 |
| SCANIA | 1912358 |
