Description

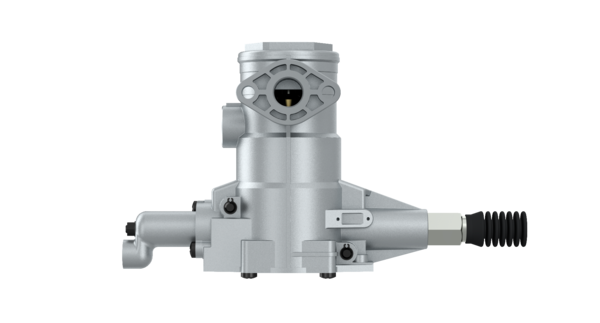

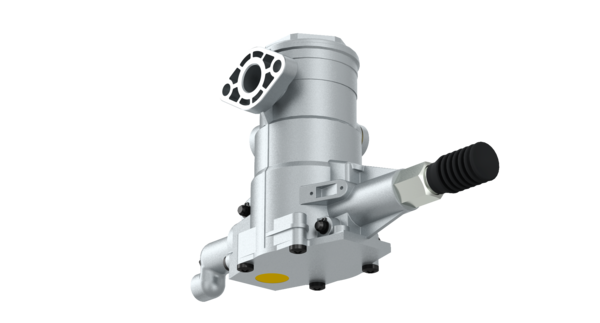

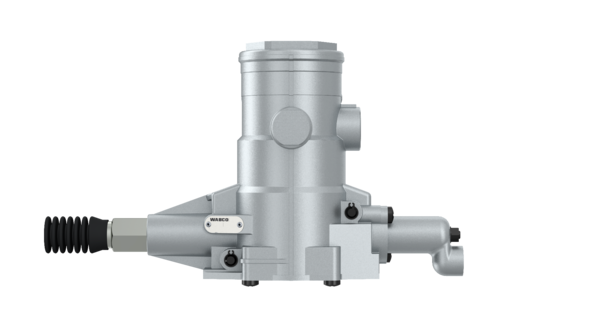

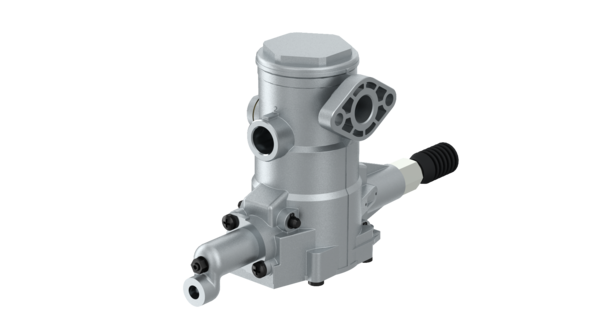

LSV Auto, pneumatical
Part Number: 4757001260
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 0.4 bar |
| Calculated Volume (dm³) | 6.212 |
| Comments | Obtainable from universal valve 4757002200, set using nomograph 4757009053 |
| Distance between bolts | 56.5 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø9.0 mm |
| Operational range | 0.5 to 4.1 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port thread 4 | M12 x 1.5 |
| Product category | Device |
| Range of adjustment | 0.5 to 4.1 bar |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Dynamic |
| GTIN | 04057875223467 |
| Size (mm x mm x mm) | 322 x 182 x 106 |
| UPC | 193133483144 |
| Weight (kg) | 1.843 |
| Weight (lb) | 4.0631 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506200 |
| EVOBUS | A0004315712 |
| MAN | 81521616070 |
| MERCEDES-BENZ | 0004315712 |
| MERCEDES-BENZ | A0004315712 |
| PACCAR | 1506200 |
| SCANIA | 262075 |
| SCANIA | 291661 |
| SCANIA | 292661 |
| SCANIA | 0291661 |
