Description

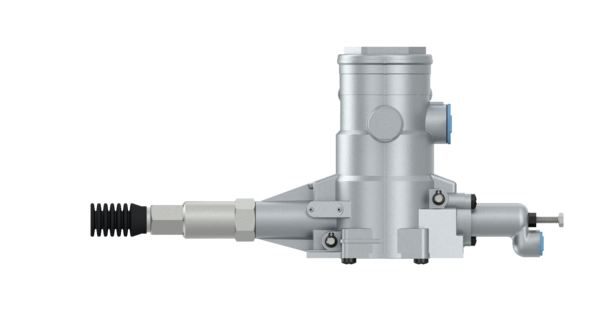

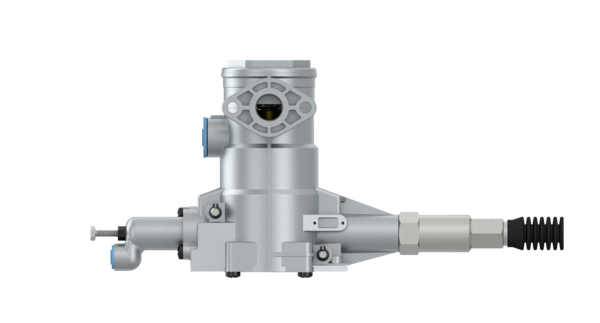

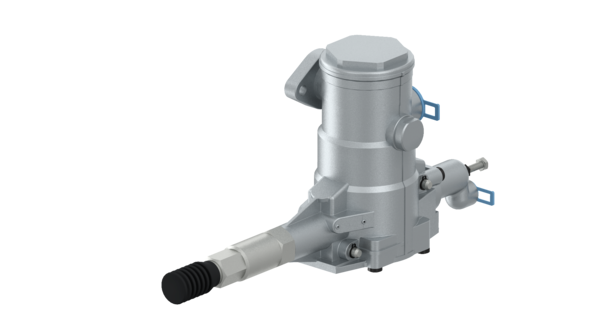

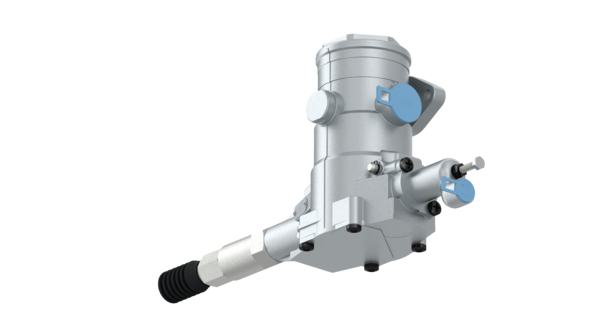

LSV Auto, pneumatical
Part Number: 4757002200
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 0.4 bar |
| Calculated Volume (dm³) | 7.466 |
| Distance between bolts | 56.5 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø9.0 mm |
| Operational range | 0.7 to 4.25 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port thread 4 | M12 x 1.5 |
| Product category | Device |
| Range of adjustment | 0.7 to 4.25 bar |
| Regulating ratio | 1:8 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Dynamic |
| GTIN | 04057875223566 |
| Size (mm x mm x mm) | 177 x 370 x 114 |
| UPC | 193133444404 |
| Weight (kg) | 2.169 |
| Weight (lb) | 4.7818 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 0633402 |
| DAF | 1505098 |
| FAYMONVILLE | 04830 |
| FRUEHAUF | AJA09761 |
| FRUEHAUF | CF350769AJA09761 |
| HENDRICKSON | 4757002200 |
| IVECO | 02518017 |
| KEMPF | 2203001 |
| KENWORTH | S475-700-220-0 |
| LEYLAND DAF | 633402 |
| LEYLAND DAF | 815558 |
| MAFI | 5661801 |
| MAFI | 0005661801 |
| MAN | 81521616060 |
| MAN | 81521616061 |
| MAN | 81521616074 |
| MAN | 90810117222 |
| MAN | 90810117228 |
| MAN | 90810117230 |
| MAN | 90810117231 |
| MAN | 90810117232 |
| MAN | 90810117235 |
| MAN | 90810117237 |
| MAN | 90810117238 |
| MAN | 90810117242 |
| MAN | 90810117243 |
| MAN | 90810117244 |
| MAN | 90810117247 |
| MAN | 90810117265 |
| MERCEDES-BENZ | 0004313306 |
| MERITOR | S4757002200 |
| NEOPLAN | 110245100 |
| NEOPLAN | 81521616074 |
| NOOTEBOOM | 308067 |
| PETERBILT | S475-700-220-0 |
| SCANIA | 270785 |
| SCHWARZMÜLLER | 9717 |
| VAN HOOL | 637208900 |
