Description

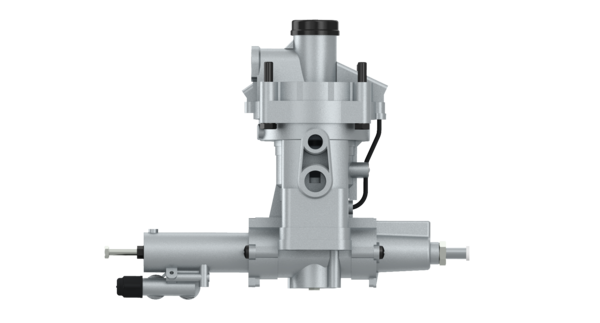

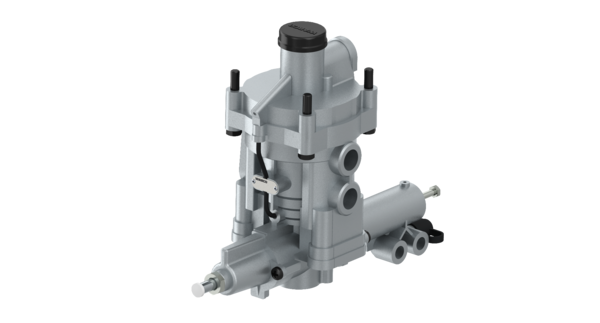

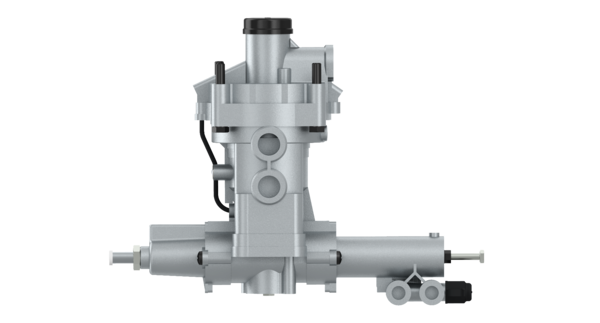

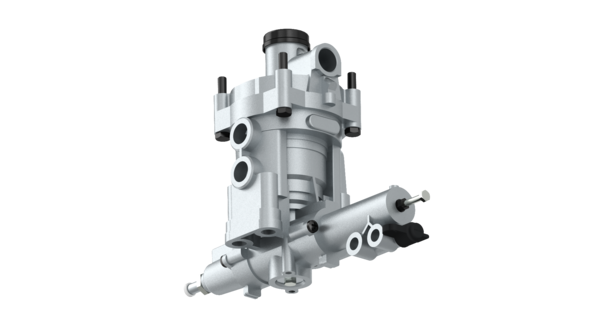

Load-Sensing Relay Emergency Valve
Part Number: 4757155000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Brake pressure | Max 10 bar |
| Break point | 0.5 bar |
| Calculated Volume (dm³) | 8.9807 |
| Distance between bolts | 84×84 mm |
| Max. operating pressure | 12.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M16 x 1.5 |
| Port thread 1-2 | M22 x 1.5 |
| Port thread 2 | 4x M16x1.5, 2x M22x1.5 |
| Port thread 41 | M12 x 1.5 |
| Port thread 42 | M12 x 1.5 |
| Port thread 43 | Test Connection |
| Product category | Device |
| Range of adjustment | 0.7 to 3.8 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Pneumatic |
| Type of operation | Static |
| Version | With Integrated Emergency Valve |
| GTIN | 04057875226093 |
| Size (mm x mm x mm) | 245 x 316 x 116 |
| UPC | 193133444473 |
| Weight (kg) | 2.506 |
| Weight (lb) | 5.5248 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BENALU | F004997 |
| DAF | 1506232 |
| FELDBINDER | 010011 |
| FRUEHAUF | CF352132 |
| FRUEHAUF | F004997 |
| HENDRICKSON | 4757155000 |
| KENWORTH | S475-715-500-0 |
| KÄSSBOHRER | 8283011000 |
| LOHR | A05030111 |
| MERITOR | S4757155000 |
| NOOTEBOOM | 1319579 |
| OTOKAR | F004997 |
| PACCAR | 1506232 |
| PETERBILT | S475-715-500-0 |
| SCANIA | 2090057 |
| SCHMITZ CARGOBULL | 8283011000 |
| SCHMITZ CARGOBULL | 1060758 |
| SCHWARZMÜLLER | 45814 |
| TIRSAN | 21151103190 |
| ZORZI | 1012014 |
