Description

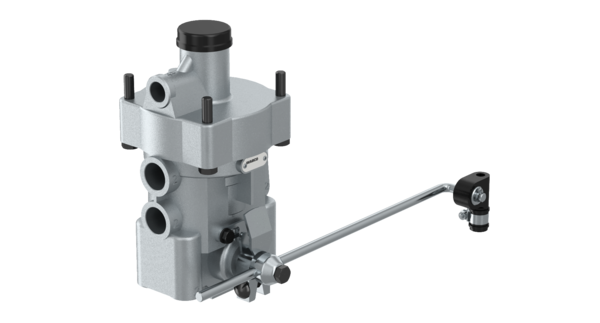

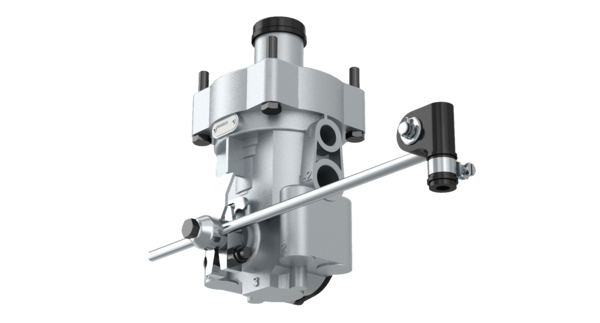

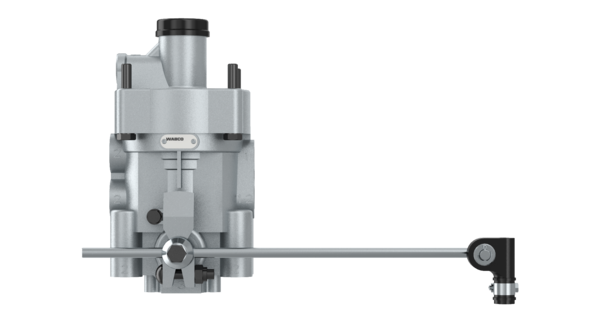

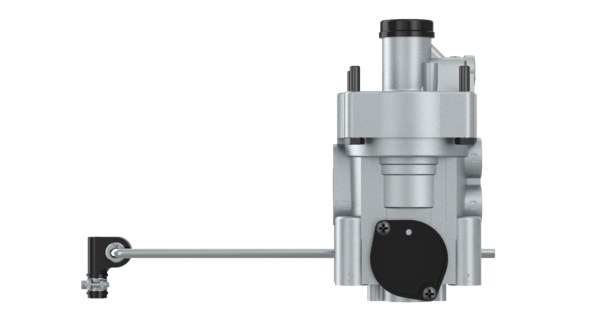

Load-Sensing Relay Emergency Valve
Part Number: 4757120000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | -50° to 20° |
| Calculated Volume (dm³) | 4.1017 |
| Comments | With lever. REV included |
| Distance between bolts | 84×84 mm |
| Important information | If you need to calibrate this Load Sensing Valve, please use our LSV-Calculator (Click here ) |
| Max. operating pressure | 10.0 bar |
| Mounting | 4x M8 |
| Port thread 1 | M16 x 1.5 |
| Port thread 1-2 | M22 x 1.5 |
| Port thread 2 | 2x M22x1.5, 4x M16x1.5 |
| Port thread 3 | Flap exhaust |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Mechanical |
| Version | With Integrated Emergency Valve |
| GTIN | 04057875225751 |
| Size (mm x mm x mm) | 220 x 158 x 118 |
| UPC | 193133444442 |
| Weight (kg) | 2.214 |
| Weight (lb) | 4.881 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1325324 |
| DAF | 1506665 |
| FRUEHAUF | AJA0918001 |
| FRUEHAUF | AJA09181 |
| FRUEHAUF | CF350908AJA09181 |
| HENDRICKSON | 4757120000 |
| IRISBUS | 500003984 |
| IVECO | 500003984 |
| KENWORTH | S4757120000 |
| LECITRAILER | 4110301 |
| LEYLAND DAF | BBU8129 |
| LOHR | A99000975 |
| MERITOR | S4757120000 |
| PETERBILT | S4757120000 |
| RENAULT | AI39780001 |
| SCANIA | 2090056 |
| TIRSAN | 21151103198 |
| ZORZI | 1012009 |
