Description

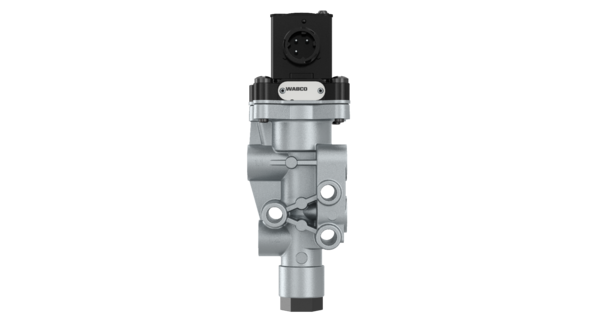

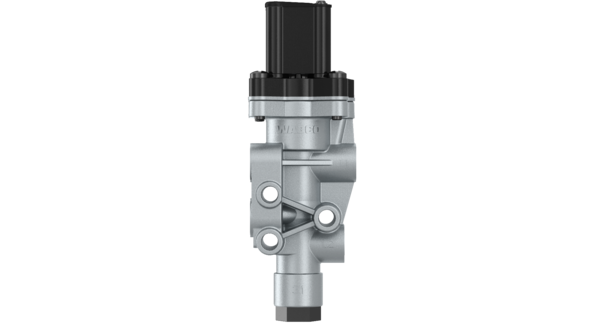

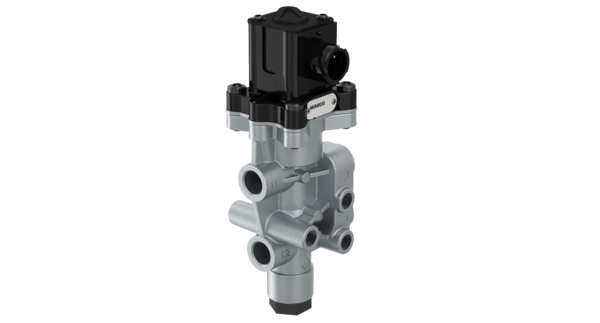

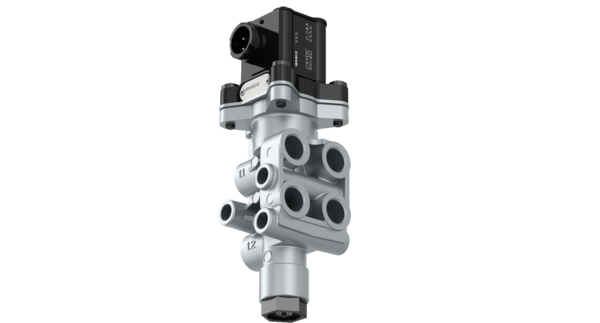

Lift Axle Control Valve
Part Number: 4630840310
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation | Electrical |
| Calculated Volume (dm³) | 0.83226 |
| Electrical connection | DIN 72585-A1-3.6-Sn/K1 |
| Max. operating pressure | 13.0 bar |
| Port thread 11 | M16 x 1.5 |
| Port thread 21 | 2x M16 x 1.5 |
| Port thread 22 | 2x M16 x 1.5 |
| Port thread 31 | Flap exhaust |
| Product category | Device |
| Protection class | IP 6K9K |
| Rated current | 220 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | LACV |
| Version | Single-circuit |
| Voltage | 24 V |
| GTIN | 04057875213826 |
| Size (mm x mm x mm) | 194 x 65 x 66 |
| UPC | 193133307280 |
| Weight (kg) | 0.667 |
| Weight (lb) | 1.4705 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518092 |
| DAF | 1527440 |
| DOLL | 7086851 |
| FAYMONVILLE | 128612 |
| FELDBINDER | 1059809 |
| KRONE | 515003124 |
| KRONE | 5058203500 |
| KRONE | 5820350 |
| KÄSSBOHRER | 21153104050 |
| KÖGEL | 2361688 |
| KÖGEL | 361688 |
| KÖGEL | 361688NEU |
| LECITRAILER | 6281005 |
| LIEBHERR | 10167543 |
| LOHR | A05021275 |
| MAN | ZG045430007 |
| NIPPON TREX | 910015-00085 |
| NOOTEBOOM | 3311396 |
| NOOTEBOOM | 401181610 |
| OTOKAR | AIF1907 |
| OTOKAR | AIF1170 |
| PACCAR | 1518092 |
| SCANIA | 2090293 |
| SCHMITZ CARGOBULL | 1060777 |
| SCHMITZ CARGOBULL | 1141678 |
| SCHWARZMÜLLER | 61238 |
| VAN HOOL | 11096111 |
| VOLVO | WA4630840300 |
| VOLVO | WA4630840310 |
