Description

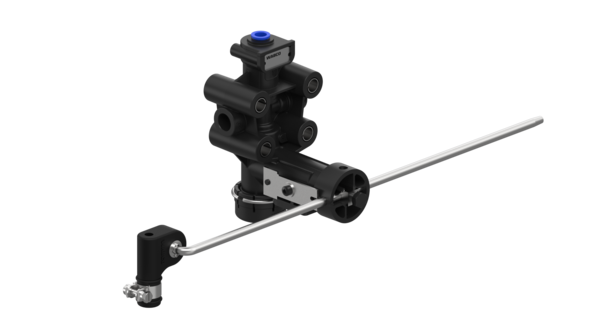

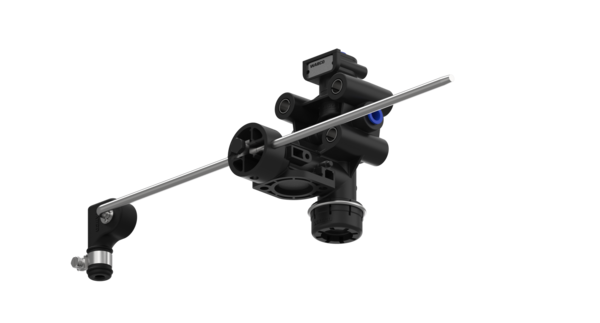

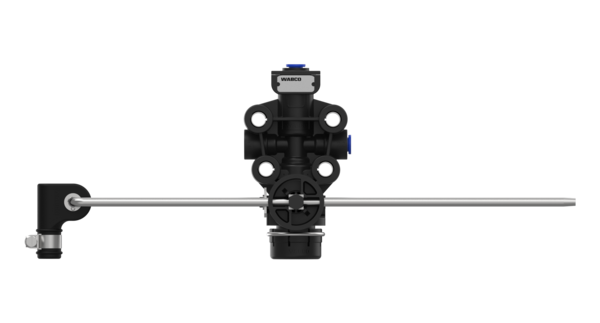

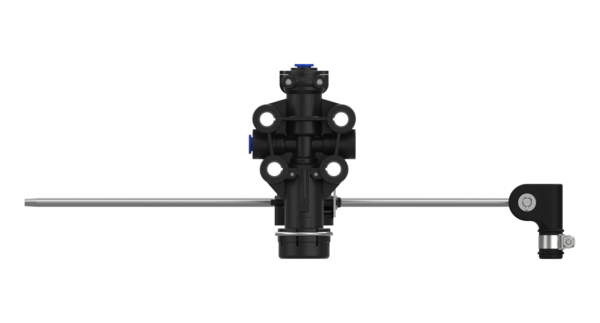

Levelling Valve
Part Number: 4640065400
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | 90° |
| Body material | Composite |
| Calculated Volume (dm³) | 5.799 |
| Comments | 1-circuit |
| Distance between holes | 40/50 mm |
| Max. operating pressure | 13.0 bar |
| Mounting | 4x Ø 8.8 mm |
| Nominal diameter | 3.0 mm |
| Port thread 1 | Ø 8 x 1 |
| Port thread 22 | Ø 8 x 1 |
| Port thread 3 | Integrated Silencer |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 2-stage without regulation |
| Version | With Lever |
| GTIN | 04057875371731 |
| Size (mm x mm x mm) | 135 x 120 x 358 |
| UPC | 193133406136 |
| Weight (kg) | 0.386 |
| Weight (lb) | 0.851 |
