Description

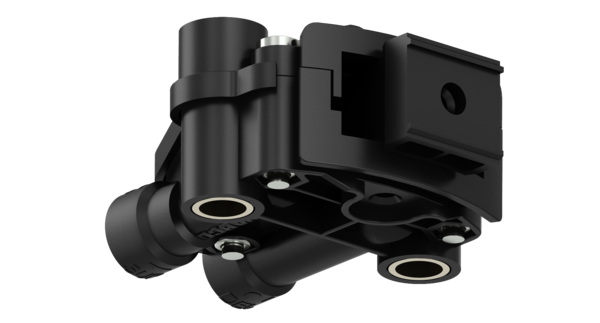

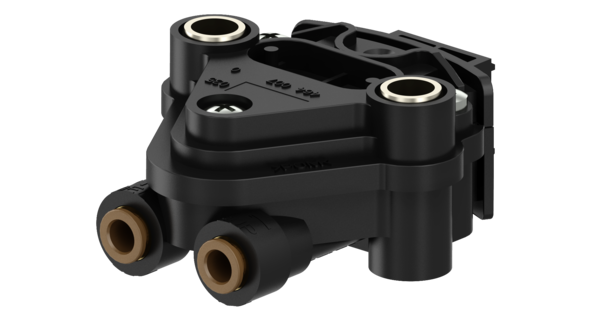

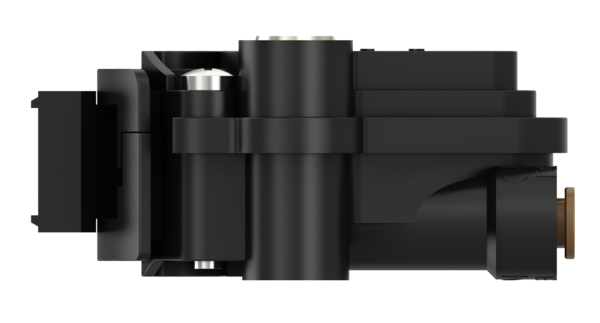

Levelling Valve
Part Number: 4640070090
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | -8° to +8° |
| Calculated Volume (dm³) | 0.170625 |
| Distance between holes | 46.4 mm |
| Max. operating pressure | 11.0 bar |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | Quick Connection Ø 6 mm |
| Port thread 2 | Quick Connection Ø 6 mm |
| Product category | Device |
| Stroke of lever | ±8° |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Without Lever |
| Type of operation | None |
| Version | Without one-way valve |
| GTIN | 04057875214977 |
| Size (mm x mm x mm) | 65 x 75 x 35 |
| UPC | 193133308447 |
| Weight (kg) | 0.11 |
| Weight (lb) | 0.24251 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 36436106005 |
