Description

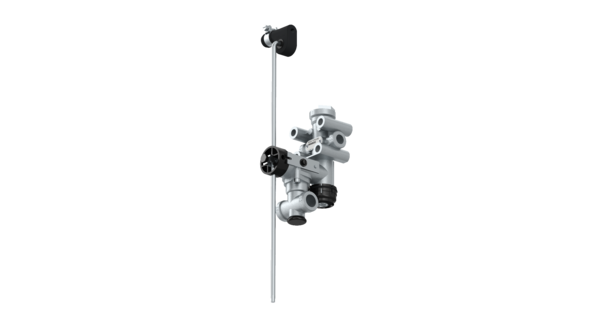

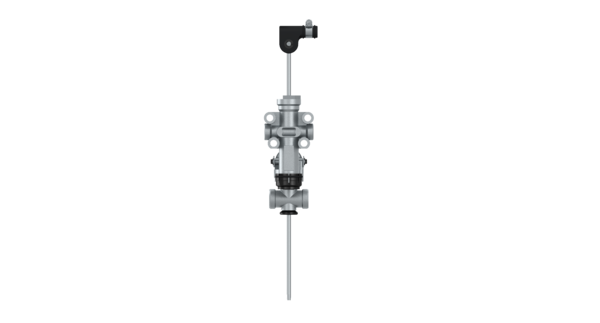

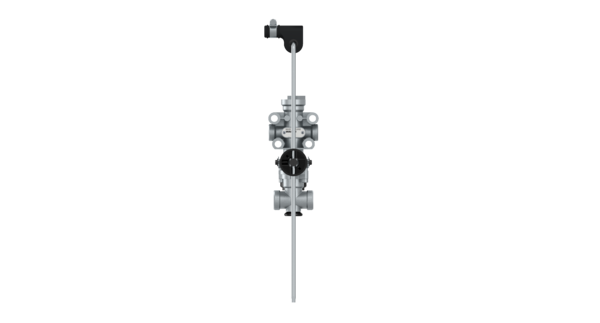

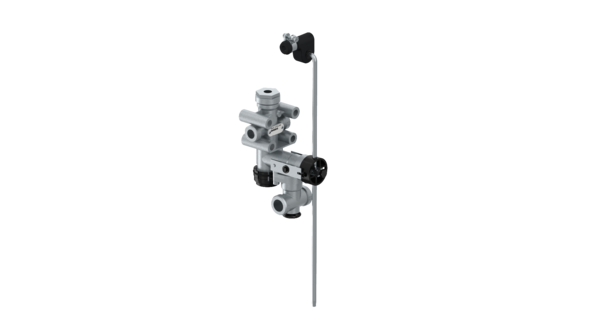

Levelling Valve
Part Number: 4640061000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | 90° |
| Body material | Aluminium |
| Calculated Volume (dm³) | 2.7648 |
| Comments | 2-circuit |
| Distance between holes | 40/50 mm |
| Max. operating pressure | 13.0 bar |
| Mounting | 4x Ø 8.8 mm |
| Nominal diameter | 3.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 3 | Flap Exhaust |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 2-stage with regulation |
| Version | With Lever |
| GTIN | 7895851076037 |
| Size (mm x mm x mm) | 360 x 120 x 64 |
| UPC | 193133442653 |
| Weight (kg) | 0.51 |
| Weight (lb) | 1.1244 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BENALU | F005268 |
| DAF | 1325336 |
| DAMBROZ | 997916016 |
| ERF | 1260680 |
| EVOBUS | 8285499000 |
| FAYMONVILLE | 3852 |
| FELDBINDER | 071432 |
| FORD | XCT2K432AA |
| FRUEHAUF | CF352131 |
| FRUEHAUF | F005268 |
| FRUEHAUF | 3766-007 |
| GOLDHOFER | 162347 |
| HENDRICKSON | 4640061000 |
| IBIPORA | 3051000036 |
| IVECO | IT4352 |
| KEMPF | 2129002 |
| KEMPF | 2129007 |
| KENWORTH | S464-006-100-0 |
| KRONE | 58086130 |
| KRONE | 5808613 |
| KRONE | 5058086130 |
| KRONE | 505808613 |
| KÄSSBOHRER | 82854990000 |
| KÄSSBOHRER | 21151103151 |
| KÖGEL | 318955 |
| KÖGEL | 3189550 |
| LANGENDORF | 1111173 |
| LECITRAILER | 4110261 |
| LEYLAND DAF | EXABRB613 |
| LIEBHERR | 503200001 |
| LOHR | A05021256 |
| MAFI | 0005661833 |
| MAN | 1260680 |
| MERITOR | S4640061000 |
| NIPPON TREX | 910045-00010 |
| NISSAN | 538109X500 |
| NOMA | 9213860 |
| NOOTEBOOM | 3323119 |
| NOOTEBOOM | 0568615 |
| ORTHAUS | 49500451003 |
| ORTHAUS | 495040 |
| OTOKAR | F005268 |
| PACCAR | CV118427 |
| PASTRE | 931160196 |
| PETERBILT | S464-006-100-0 |
| SAF | 4425013400 |
| SCANIA | 2089978 |
| SCHMITZ CARGOBULL | 050637 |
| SCHMITZ CARGOBULL | 82854990000 |
| SCHMITZ CARGOBULL | 50637 |
| SCHWARZMÜLLER | 27475 |
| SHOWA | A8926-139000 |
| TIRSAN | 21151103151 |
| TOHO | T851-119 |
| TRUCKVAN | 2014000029 |
| UD TRUCKS | 538109X500 |
| VAN HOOL | 637213050 |
| ZORZI | 1013140 |
