Description

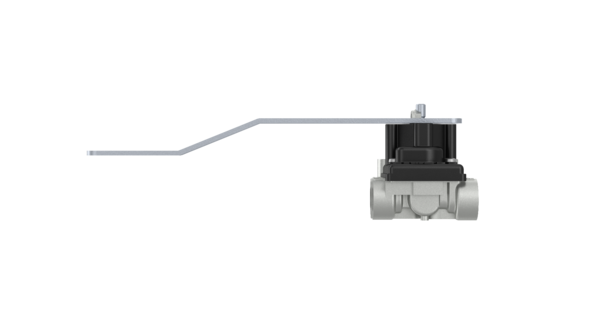

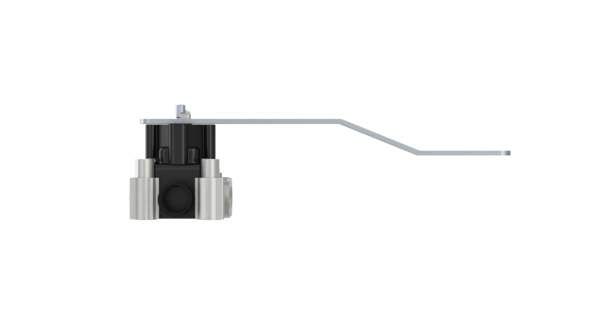

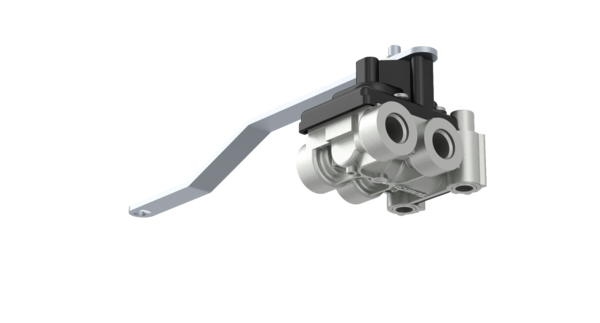

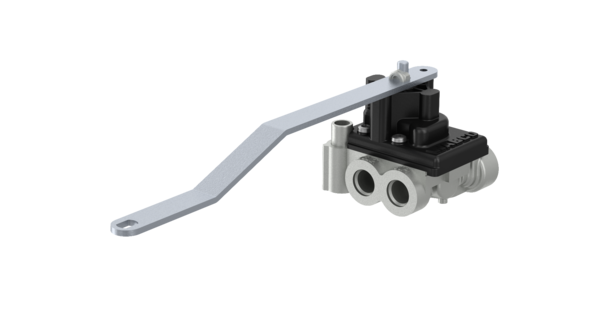

Levelling Valve
Part Number: 4640080110
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | -50° to +50° |
| Calculated Volume (dm³) | 1.2709 |
| Distance between holes | 40 mm |
| Length | R 200 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | 1/4″ NPTF |
| Port thread 2 | 1/4″ NPTF |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With Lever |
| Type of operation | Hole-lever Ø 10 x 6.5 mm |
| Version | Without one-way valve |
| GTIN | 04057875215240 |
| Size (mm x mm x mm) | 71.5 x 75 x 237 |
| UPC | 193133442691 |
| Weight (kg) | 0.3 |
| Weight (lb) | 0.66139 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | TDAS4640080110 |
| KENWORTH | S464-008-011-0 |
| MACK | 8235-S4640080110 |
| MACK | 6300-4640080110 |
| MERITOR | S4640080110 |
| PETERBILT | S464-008-011-0 |
| VOLVO | S4640080110 |
| VOLVO | WAB4640080110 |
