Description

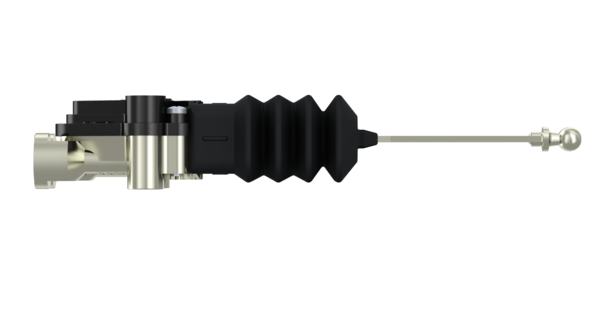

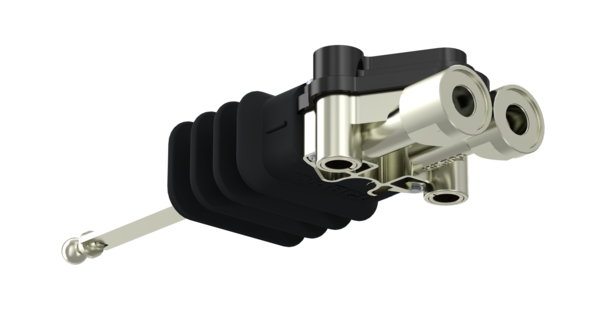

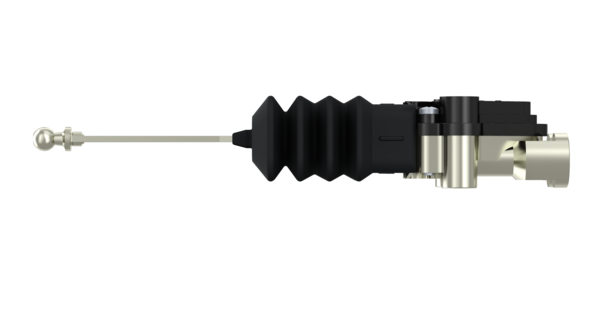

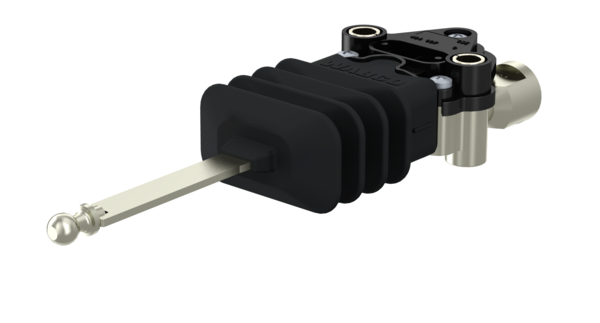

Levelling Valve
Part Number: 4640070110
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | -19° to +19° |
| Calculated Volume (dm³) | 0.5434 |
| Distance between holes | 46.4 mm |
| Length | R 195 mm |
| Max. operating pressure | 12.5 bar |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | M10 x 1 |
| Port thread 2 | M10 x 1 |
| Product category | Device |
| Stroke of lever | ±30° |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With Lever |
| Type of operation | Hole-lever Ø 6.5 mm |
| Version | With one-way valve |
| GTIN | 7895851085961 |
| Size (mm x mm x mm) | 65 x 220 x 38 |
| UPC | 193133308461 |
| Weight (kg) | 0.353 |
| Weight (lb) | 0.778 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518095 |
| EVOBUS | A0003284530 |
| MERCEDES-BENZ | 0003284530 |
| MERCEDES-BENZ | A0003284530 |
| MERCEDES-BENZ | A0003284530004 |
| MERCEDES-BENZ | A0003284530Z005 |
| MERCEDES-BENZ | 0003284530004 |
| MERCEDES-BENZ | 0003284530Z005 |
| MERCEDES-BENZ | A0003284530Z004 |
| SCANIA | 2089981 |
