Description

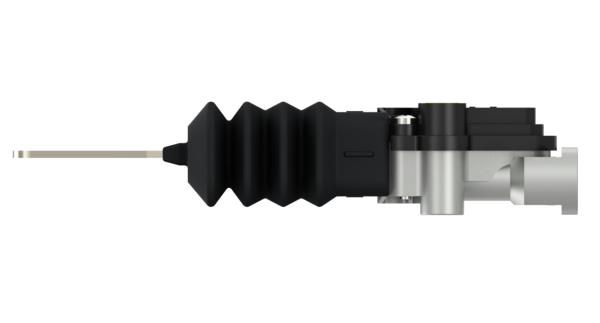

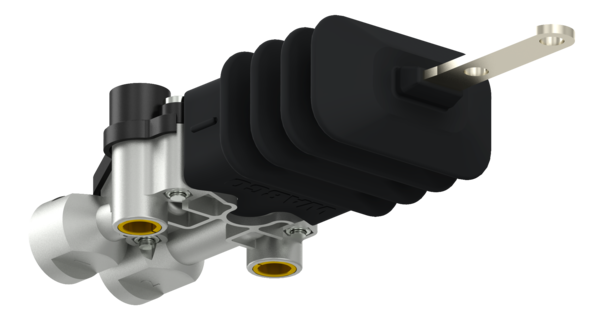

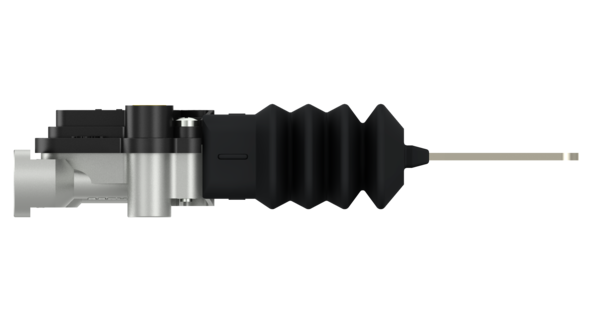

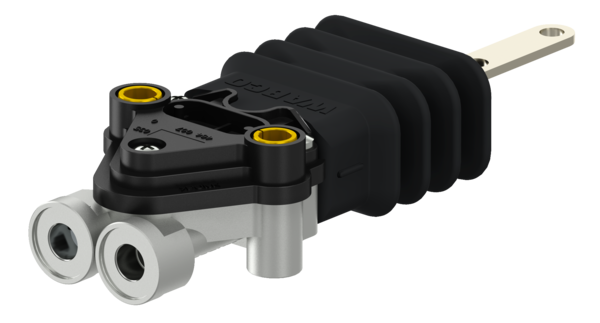

Levelling Valve
Part Number: 4640070370
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | -19° to +19° |
| Calculated Volume (dm³) | 0.43533 |
| Distance between holes | 46.4 mm |
| Length | R 160 mm |
| Max. operating pressure | 11.0 bar |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | M10 x 1 |
| Port thread 2 | M10 x 1 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | With Lever |
| Type of operation | Hole-lever Ø 6.5 mm |
| Version | With one-way valve |
| GTIN | 04057875215141 |
| Size (mm x mm x mm) | 64 x 179 x 38 |
| UPC | 193133308522 |
| Weight (kg) | 0.344 |
| Weight (lb) | 0.75839 |
