Description

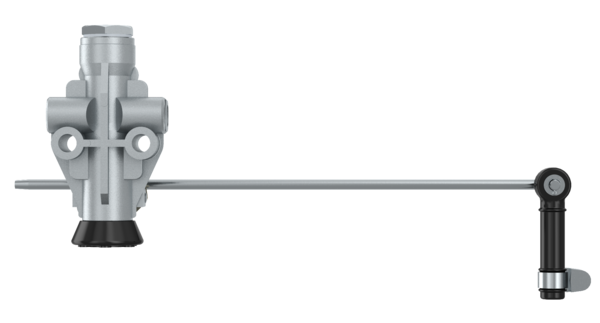

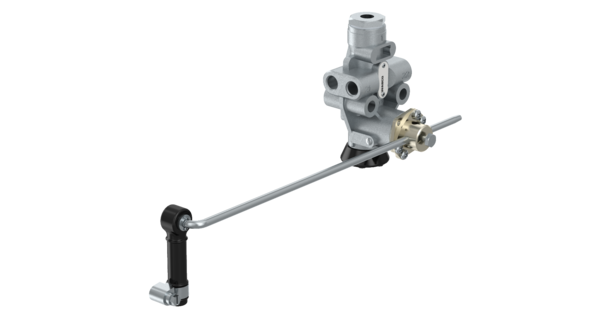

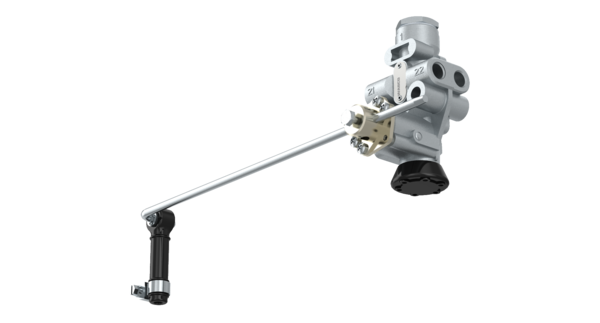

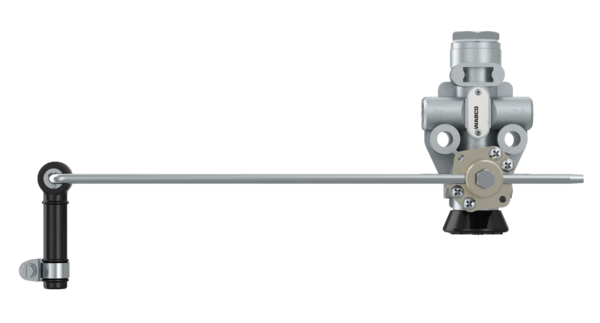

Levelling Valve
Part Number: 4640023300
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation | Ø 6 x 313 mm |
| Actuation angle | 90° |
| Calculated Volume (dm³) | 1.792 |
| Comments | 2-stage |
| Distance between holes | 40 mm |
| Height | No hight limitation |
| Max. operating pressure | 22.0 bar |
| Mounting | 2x Ø 9 mm |
| Nominal diameter | 1.3 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 3 | Flap Exhaust |
| Product category | Device |
| Side of mounting | 4-sided |
| Technical specification | OE specification |
| Temperature range | -40 to +85 °C |
| Type | 2-circuit |
| Version | With Lever |
| GTIN | 04057875214625 |
| Size (mm x mm x mm) | 316 x 70 x 81 |
| UPC | 193133442585 |
| Weight (kg) | 0.572 |
| Weight (lb) | 1.261 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ASHOK LEYLAND | K8212900 |
| DAF | 0638057 |
| ERF | 1065236 |
| EVOBUS | 8283637000A |
| EVOBUS | A6993280030 |
| FAW | 2941010E240 |
| FAW | S293604048Z |
| FAW | S2936040-48Z |
| FELDBINDER | 006149 |
| FREIGHTLINER | 9628S4640023300 |
| FRUEHAUF | AFA1658001 |
| FRUEHAUF | ASZ062110027565P |
| GOLDHOFER | 151169 |
| HENDRICKSON | NB1402 |
| IRISBUS | 222685 |
| IRISBUS | 0300379800 |
| IVECO | 222685 |
| KEMPF | 2129001 |
| KENWORTH | S464-002-330-0 |
| KING LONG | 229600002 |
| KRONE | 945035 |
| KRONE | 9451430 |
| KRONE | 945143 |
| KRONE | 5009451430 |
| KÄSSBOHRER | 82836370000 |
| KÖGEL | 77415 |
| LEYLAND DAF | FBU3129 |
| MACK | 6300-4640023300 |
| MAFI | 5661802 |
| MAFI | 0005661802 |
| MAN | 84436106006 |
| MAN | 1065236 |
| MERCEDES-BENZ | 6993280030 |
| MERCEDES-BENZ | A6993280030 |
| MERITOR | S4640023300 |
| PETERBILT | S464-002-330-0 |
| RENAULT | 5000791021 |
| RENAULT | 1576736 |
| RENAULT | 8030222 |
| SAF | 05400006600 |
| SCANIA | 2089974 |
| SCHMITZ CARGOBULL | 82836370000 |
| SCHMITZ CARGOBULL | 1020757 |
| SCHWARZMÜLLER | 9995 |
| SHAANXI | 6180H2932010 |
| STEYR | 99100360045 |
| STEYR | 99100361496 |
| STEYR | 527176005000 |
| VAN HOOL | 637210150 |
| VDL | 20180830 |
| VDL | 180830 |
| VOLVO | 1576736 |
| VOLVO | 8030222 |
| VOLVO | 5000791021 |
| VOLVO | WAB4640023300 |
| YUTONG | 350600170A |
| YUTONG | 350600170 |
| YUTONG | 3506-00170 |
