Description

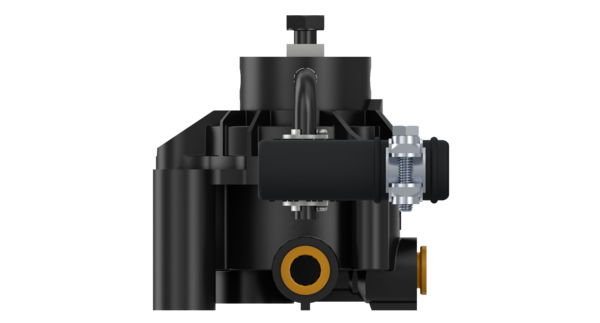

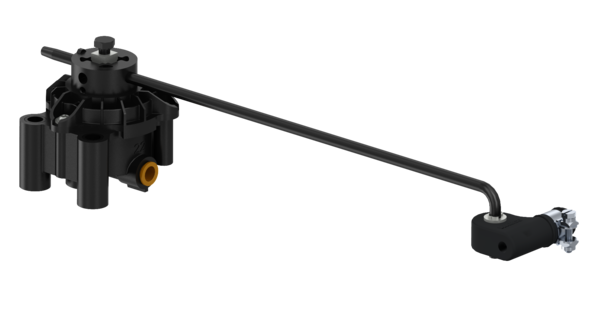

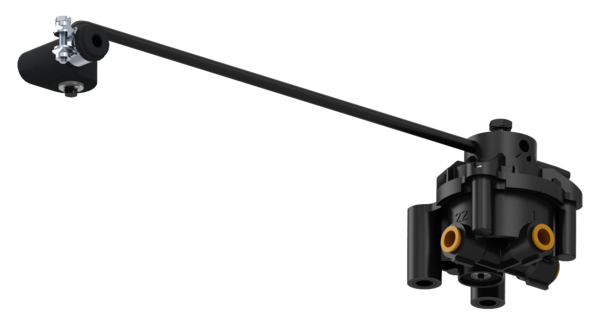

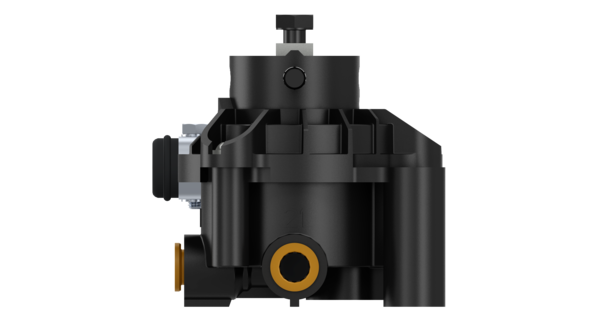

Levelling Valve
Part Number: 4640026010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation | Ø 6 x 313 mm |
| Actuation angle | 90° |
| Calculated Volume (dm³) | 0 |
| Distance between holes | 40 mm |
| Height | No hight limitation |
| Max. operating pressure | 12.0 bar |
| Mounting | 2x Ø 8.3 mm |
| Port thread 1 | Quick connection Ø 8 |
| Port thread 21 | Quick connection Ø 9 |
| Port thread 22 | Quick connection Ø 10 |
| Port thread 3 | Flap Exhaust |
| Product category | Device |
| Side of mounting | 8-sided |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 2-circuit |
| Version | With Lever |
| GTIN | 04057875214656 |
| UPC | 193133308218 |
| Weight (kg) | 0.001 |
| Weight (lb) | 0.0022046 |
OEM Cross References
| Brand | Reference No |
|---|---|
| YUTONG | 3506-04518 |
