Description

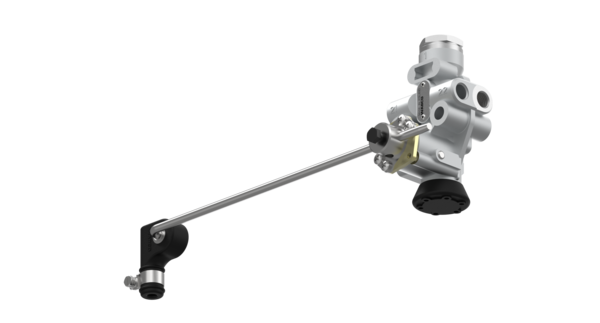

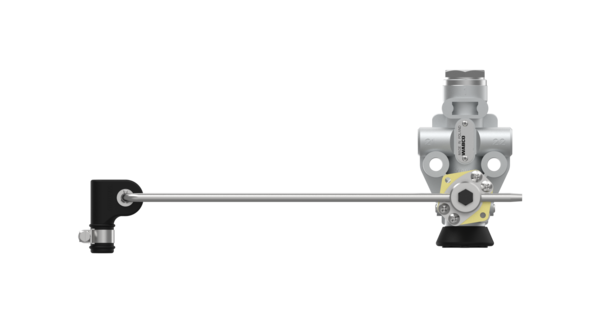

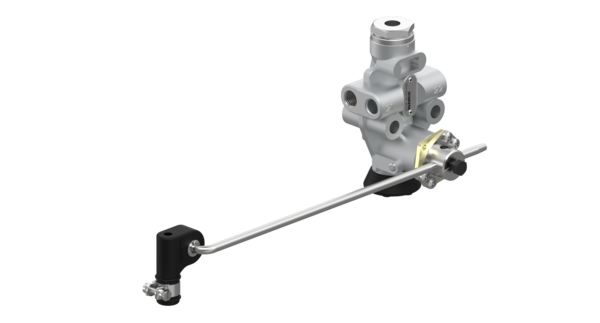

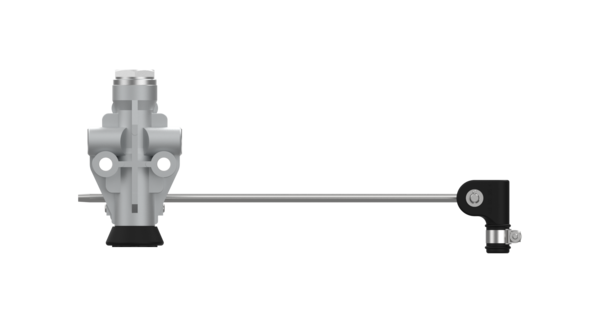

Levelling Valve
Part Number: 4640023340
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation | Ø 6 x 289 mm |
| Actuation angle | 90° |
| Calculated Volume (dm³) | 3.437 |
| Distance between holes | 40 mm |
| Height | No hight limitation |
| Max. operating pressure | 22.0 bar |
| Mounting | 2x Ø 9 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 3 | Flap Exhaust |
| Product category | Device |
| Side of mounting | 4-sided |
| Technical specification | OE specification |
| Temperature range | -40 to +85 °C |
| Type | 2-circuit |
| Version | With Lever |
| GTIN | 04057875319122 |
| Size (mm x mm x mm) | 305.5 x 90 x 125 |
| UPC | 193133308133 |
| Weight (kg) | 0.588 |
| Weight (lb) | 1.296 |
