Description

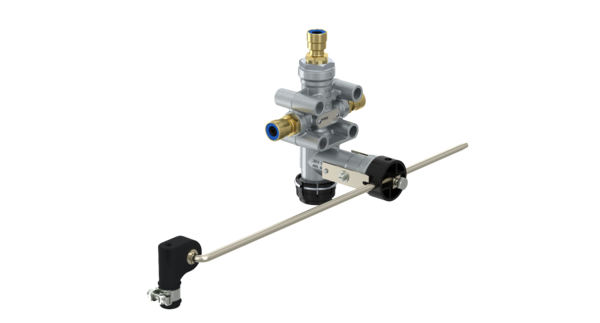

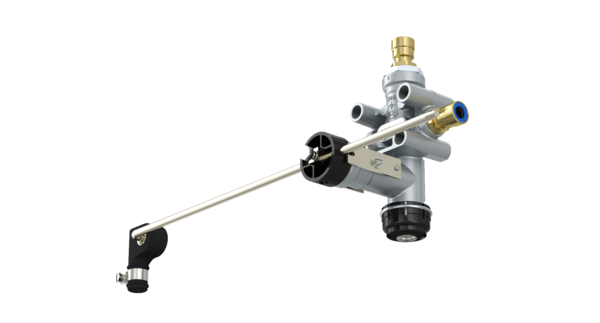

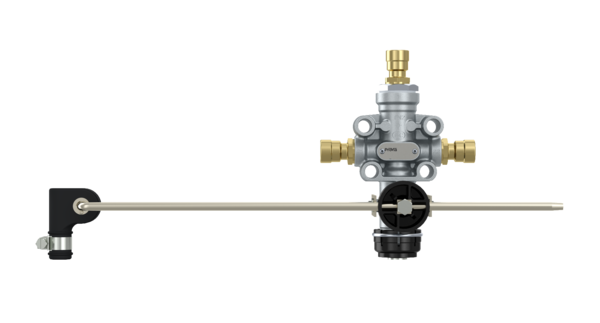

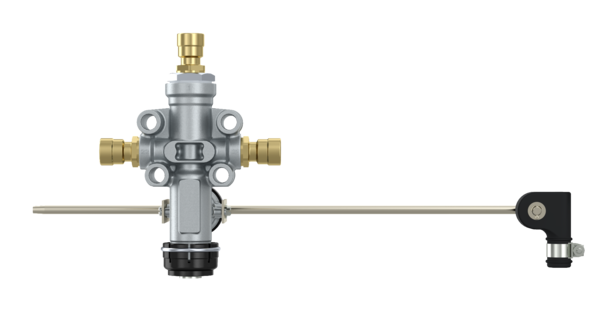

Leveling Valve
Part Number: PRO0060040
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Actuation angle | 90° |
| Calculated Volume (dm³) | 6.51 |
| Distance between holes | 40/50 mm |
| Max. operating pressure | 13.0 bar |
| Mounting | 4x Ø 8.8 mm |
| Nominal diameter | 3.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 3 | Flap Exhaust |
| ProVia warranty | 1 year |
| Product category | Device |
| Push-in fitting | Ø 8×1.0 |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Type | 2-stage without regulation |
| Variant | Basic |
| Version | With Lever |
| GTIN | 04057877004910 |
| Size (mm x mm x mm) | 350 x 155 x 120 |
| UPC | 193134001606 |
| Weight (kg) | 0.52 |
| Weight (lb) | 1.146 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KÖGEL | 6502260 |
| LOHR | A05021228A |
| SCANIA | 2089979 |
| SCHMITZ CARGOBULL | 1118421 |
| SCHWARZMÜLLER | 86425 |
