Description

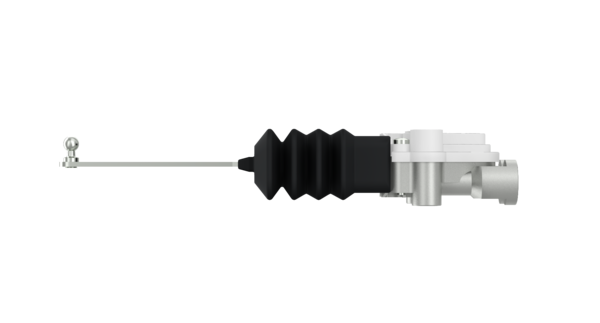

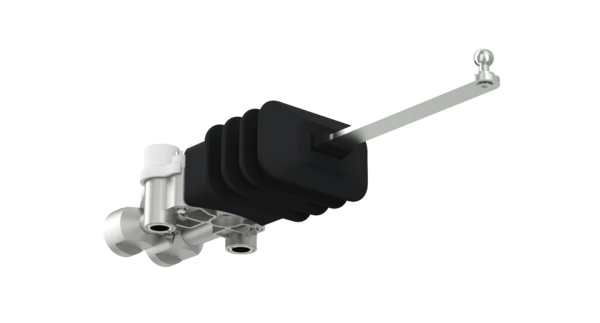

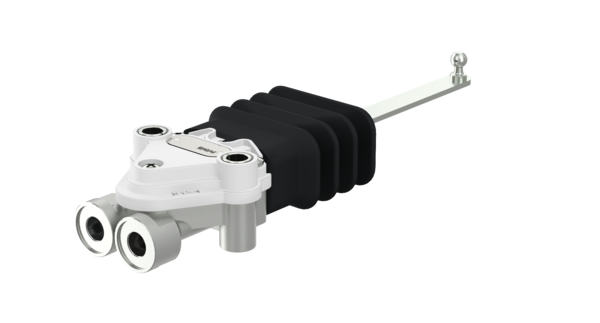

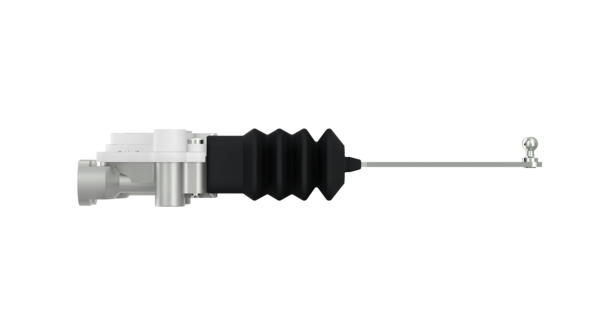

Leveling Valve
Part Number: PRO0070030
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Actuation angle | -19° to +19° |
| Body material | Metal |
| Calculated Volume (dm³) | 0.81 |
| Distance between holes | 46.4 mm |
| Fixing length (body + lever) | 177 mm |
| Length | R 201 mm |
| Max. operating pressure | 11.0 bar |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | M10 x 1 |
| Port thread 2 | M10 x 1 |
| Ports | M10 x 1.0 |
| ProVia warranty | 1 year |
| Product category | Device |
| Technical specification | AM specification |
| Temperature range | -45°C to +80°C |
| Type | With Lever |
| Type of lever fixing | Ball Ø 8, 90° rotated |
| Type of operation | Sphere-lever Ø 8 mm |
| Version | With one-way valve |
| GTIN | 04057877003159 |
| Size (mm x mm x mm) | 240 x 45 x 75 |
| UPC | 193134004379 |
| Weight (kg) | 0.408 |
| Weight (lb) | 0.8995 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518094 |
| IVECO | 08188642 |
| IVECO | 8188642 |
| VOLVO | 20531967 |
| VOLVO | 3198233 |
