Description

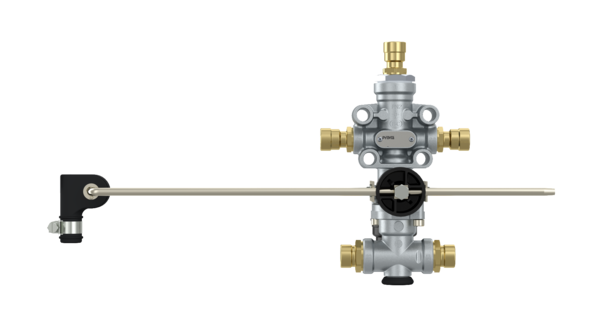

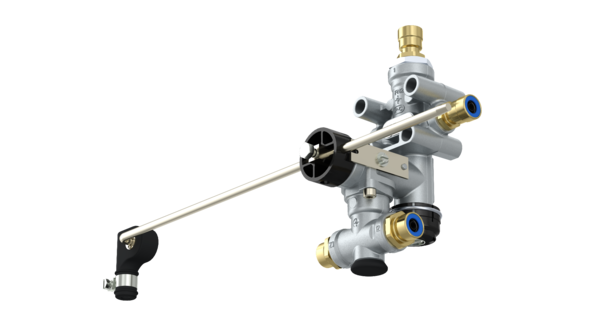

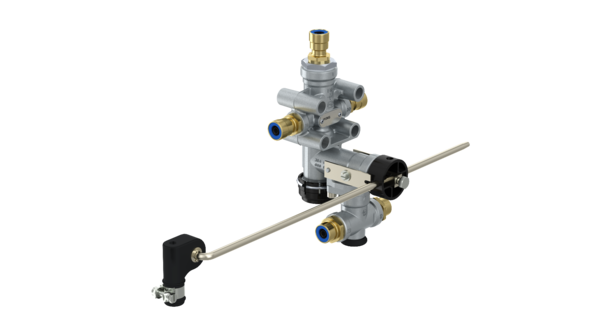

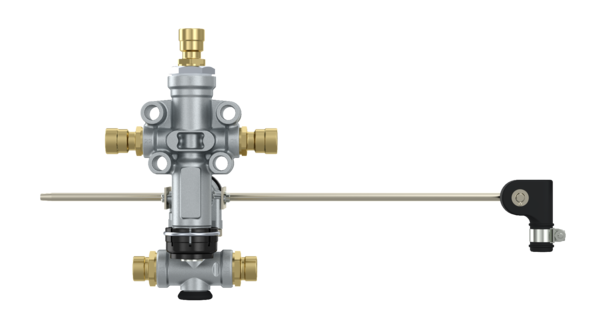

Leveling Valve
Part Number: PRO0060020
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Actuation angle | 90° |
| Calculated Volume (dm³) | 5.358 |
| Distance between holes | 40/50 mm |
| Max. operating pressure | 13.0 bar |
| Mounting | 4x Ø 8.8 mm |
| Nominal diameter | 3.0 mm |
| Port thread 1 | M12 x 1.5 |
| Port thread 12 | M12 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 23 | M12 x 1.5 |
| Port thread 3 | Flap Exhaust |
| ProVia warranty | 1 year |
| Product category | Device |
| Push-in fitting | Ø 8×1.0 |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Type | 2-stage with regulation |
| Variant | Height limitation |
| Version | With Lever |
| GTIN | 04057877004934 |
| Size (mm x mm x mm) | 363 x 120 x 123 |
| UPC | 193134001507 |
| Weight (kg) | 0.826 |
| Weight (lb) | 1.821 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 2089980 |
