Description

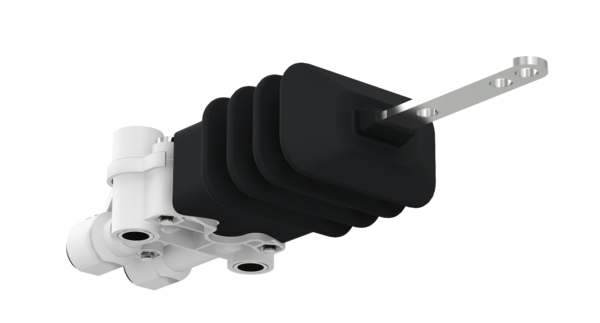

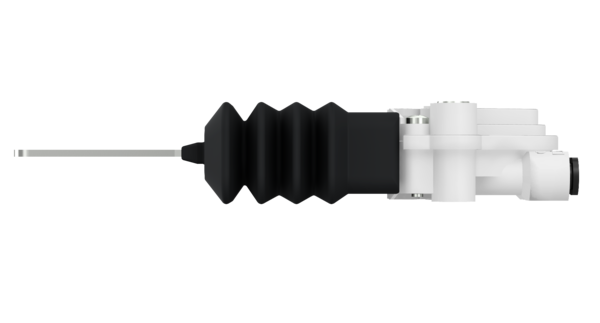

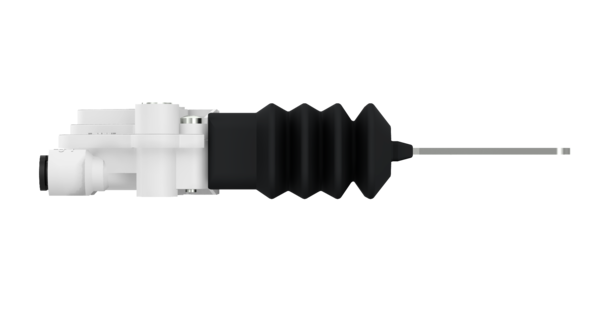

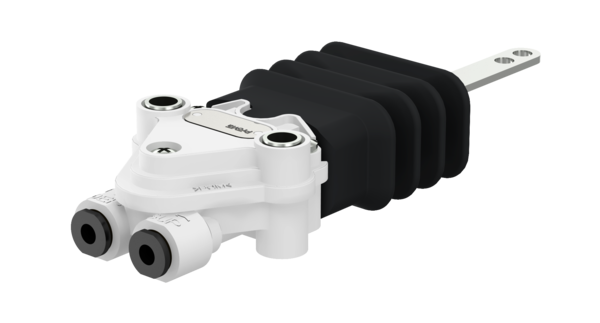

Leveling Valve
Part Number: PRO0070070
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Actuation angle | -19° to +19° |
| Body material | Plastic |
| Calculated Volume (dm³) | 0.8269 |
| Distance between holes | 46.4 mm |
| Fixing length (body + lever) | 147 mm |
| Length | R 171 mm |
| Max. operating pressure | 11.0 bar |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | Quick Connection Ø 6 mm |
| Port thread 2 | Quick Connection Ø 6 mm |
| Ports | Push in fitting Ø 6 |
| ProVia warranty | 1 year |
| Product category | Device |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Type | With Lever |
| Type of lever fixing | 3 fixing holes |
| Type of operation | Hole-lever Ø 6.5 mm |
| Version | With one-way valve |
| GTIN | 04057877003197 |
| Size (mm x mm x mm) | 245 x 75 x 45 |
| UPC | 193134004348 |
| Weight (kg) | 0.255 |
| Weight (lb) | 0.5622 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAFI | 0005661838 |
| RENAULT | 5010260136 |
| RENAULT | 7420746465 |
| VOLVO | 20746465 |
| VOLVO | 7420746465 |
