Description

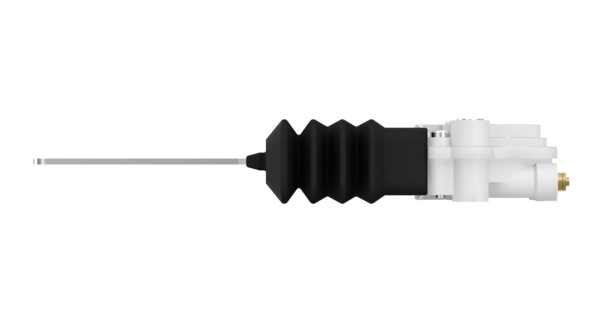

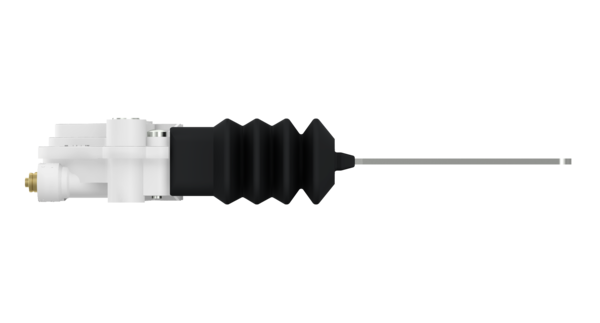

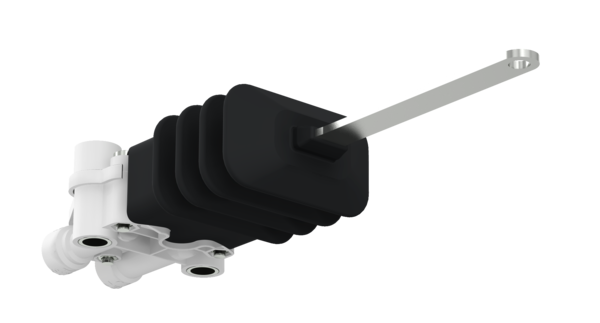

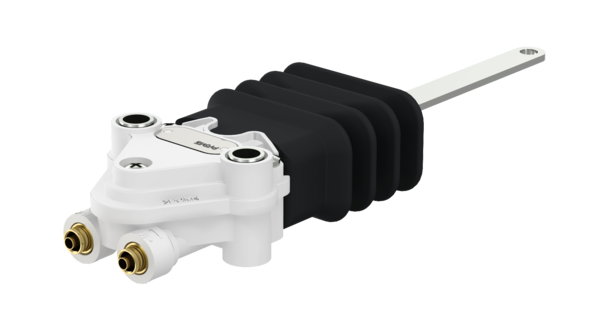

Leveling Valve
Part Number: PRO0070010
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Actuation angle | -19° to +19° |
| Body material | Plastic |
| Calculated Volume (dm³) | 0.4735 |
| Distance between holes | 46.4 mm |
| Fixing length (body + lever) | 177 mm |
| Length | R 201 mm |
| Max. operating pressure | 11.0 bar |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | Quick Connection Ø 6 mm |
| Port thread 2 | Quick Connection Ø 6 mm |
| Ports | Push in fitting Ø 6 |
| ProVia warranty | 1 year |
| Product category | Device |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Type | With Lever |
| Type of lever fixing | 1 fixing hole |
| Type of operation | Hole-lever Ø 6.5 mm |
| Version | With one-way valve |
| GTIN | 04057877003142 |
| Size (mm x mm x mm) | 225 x 61 x 34.5 |
| UPC | 193134004409 |
| Weight (kg) | 0.216 |
| Weight (lb) | 0.4762 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505081 |
| DAF | 759050 |
| DAF | 0759050 |
| DONGFENG (DFL) | 5001090-C1100 |
| DONGFENG (DFM) | 5001090-C6100 |
| DONGFENG (DFM) | 5001090-C1100 |
| ERF | 4134534 |
| FAW | 5001320-Q824A |
| FAW | 5001075CA01A |
| FAW | 5001075CA01C00B |
| FAW | 5001320Q824A |
| FORD | 3C465C100AA |
| IRISBUS | 8188642 |
| IVECO | 412 113 34 |
| IVECO | 8188642 |
| IVECO | 08188642 |
| JAC | 64006-Y4010XZ |
| KÖGEL | 332419 |
| MAN | 4134534 |
| MAN | 81436106129 |
| NEOPLAN | 81436106129 |
| PACCAR | 1505081 |
| RENAULT | 5021170189 |
| RENAULT | 5010136105 |
| SCANIA | 1934938 |
| SINOTRUK (CNHTC) | WG1642440051/1 |
| SINOTRUK (CNHTC) | WG16424400511 |
| TATRA | 4640070010 |
